China Slitting and Cut to Length Line

Basic Info

• Model NO.: T44K
• Transport Package: Seaworthy Packing/Naked
• Origin: Jiangsu, China

• Trademark: SIECCTECH
• Specification: based>T44K Economic Cut-To-Length line



  I,Main performance and usage
  This production line structure is practical, reliable performance, convenient operation and maintenance, applicable to thickness 0.5--2mm, width below 1500mm used for uncoiling, leveling, fixed length cutting operation of the following specifications of Carbon steel coil, galvanized plate coil, etc.

  II,Main technical data
  Material: Carbon steel coil, galvanized plate coil, etc.
  Strength: σs≤280Mpa,σb≤480Mpa
  1,Processing thickness:0.5~2mm
  2,Processing width:300~1500mm
  3,Coil weight:8T
  4,Inner dia. of coil:Φ508mm Φ610mm
  Outer dia. of coil: Φ508mm~Φ1800mm;
  5,Leveling speed:≤30m/min(adjustable)
  5-12pcs/min(as 1000~2000mm sheet)
  6,Leveling rollers number:11 rollers
  7,Leveling rollers dia. :?/span>90mm
  8,Leveling precision:≤?/span>2.0mm/m2 (as thickness 1.2mm)
  Length precision: ≤?/span>1.5mm /2m
  Diagonal precision: ≤?/span>1.0mm/2m
  9,Cut-to-length range:300~4000mm
  10,Stacking height: ≤650mm(include tool 150mm)
  Stacking height: Max. 5000kg
  11,Total power of equipment:60KW
  12,Hydraulic system working pressure: ≤15MPa
  13,Overall dimension of installation(L?/span>W):About 18500mm?/span>6000mm
  Line composed by:

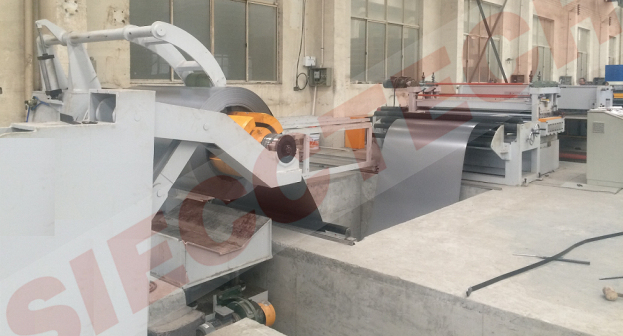

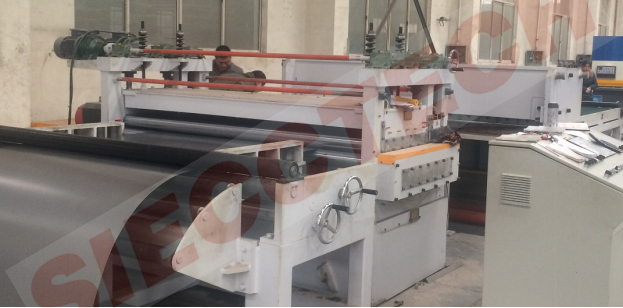

  Feeding car→Uncoiler Hydraulic support→Stripping head straight head traction device (optional)→Hydraulic swing bridge and buffer storage pit→Correcting device→Main leveling machine→Shearing machine→Conveyor belt(optional)→Hydraulic lifting table(optional) stack device(optional)→Hydraulic system→Pneumatic system→Electrical control system

  III,Main parts and brief description

  1. Feeding car

  Hydraulic lifting, mechanical walking, loading ≤8t
  2,Uncoiler
  Adopts The cantilever type hydraulic inner expansion uncoiler.
  Without power and passive loading.
  There is dynamic pressure guiding device in the top of coil material.
  3,Stripping head straight head traction device(optional):
  Hydraulic telescopic feeding guide plate, telescopic lifting action. The motor in the hydraulic arm swing bracket expanse the coil material through reducer chain transmission drive the glue rollers.
  The hydraulic cylinder drive the pressing- head do rise-down pressing in order to enter the traction roller.
