China Slitting and Cut to Length Machine China Manufacturer

China Slitting and Cut to Length Machine

Basic Info

Advantage: Easy to Maintenance

Condition: New

Product Name: Slitting& Cut to Length Line

Steel Thickness: 0.6-1.5mm

Decoiler: Electric

Trademark: SAIBO

Transport Package: Sea Packing

Origin: China

HS Code: 84552210

Product Description

Slitting& Cut To Length Machine

Raw Material:

All of our machine profile is customized, above raw material is>1. Coil width: 1000mm

2. Thickness: 0.6-1.5mm

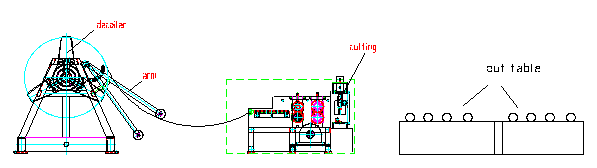

Layout:

Manual de-coiler-Feeding-Slitting-Cutting-Out table

Specifications:

Item NO

Description

Offered specification

1Roll Forming Machine

Slitting& Cut to Length Machine

2Coil width1000mm3Rolling Speed12-15m/min(not include cutting time)4Rolling Thickness0.6-1.5mm GI, color steel5Control SystemPLC (Panasonic) as list in the note6Un Coiler5T electric de-coiler7Roller Stations2 stations for feeding8Roller MaterialRubber roller9Shaft Material and DIA?5mm, material is 45# forge steel10Post cuttingHydraulic cutting slitting11Maim Motor Power7.5kw12Hydraulic Station Power5.5kw13Hydraulic Pressure12-16Mpa adjustable14Material Of CuttingCr12Mov quenching 58-62篊15Structure Of The StationsWall panel16Tolerance3m -1.5mm17Electric Source

380V, 60HZ,3 phase

According to customer's require

18Way Of DriveBy chain19Color Of The MachineYellow and blue20Size of the machineL*W*H about 2.0m*1.7m*1.2m21Container Need1x20 feet

Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
