China Slitting Line 5 Ton Capacity China Manufacturer

China Slitting Line 5 Ton Capacity

Basic Info

  • Model NO.: CAZJ-1250B
  • Origin: China
  • Trademark: canwin
  • HS Code: 84623110

Product Description

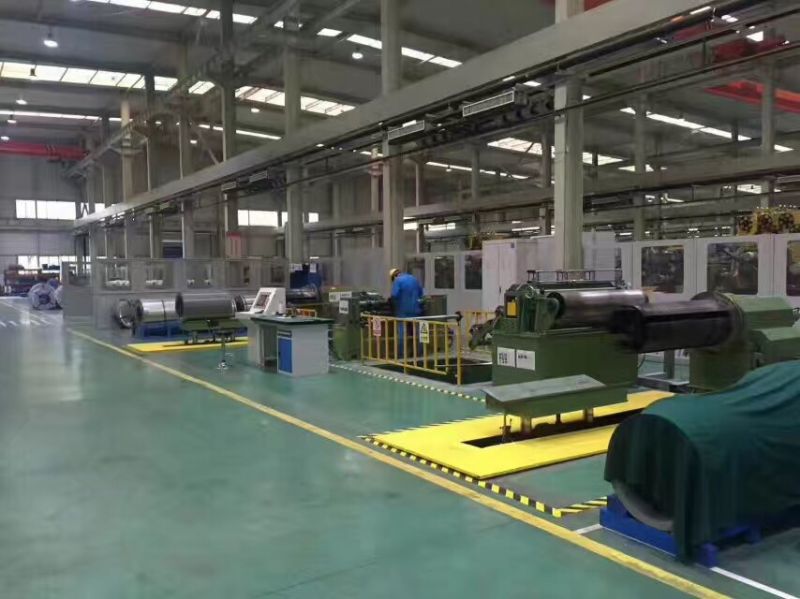

CNC precision slitting line is mainly used for strip silicon steel sheet coils processed by high-speed precision,mainly consist of:

Motor decoiler,decoiler trolley(assist operation platform),guard rail/shaft,1250 type rolling slitting machine,material photoelectric detection device,pneumatic tensioner,servo recoiler,electric trolley,pheumatic system,electrical control system

Applicable material: silicon (si) sheet steel coil the material quality: up to the standard quality goods low carbon steel coil tensile strength, sigma b or less 440 mpa, sigma 0.2 or less 280 mpamaterial thickness: 0.23 0.35 mmthe material width: 60-1250 - mm (Max.)coil diameter: Ф 460 - Ф 520 mm
coil diameter: Ф 1200 mm (Max.)the coil weight: most about 5 tThe shear finished product technical parametersthe coil diameter: Ф 508 20coil diameter: Ф 1200 mm (Max.)the coil weight: most about 5 tthe width tolerance: / - 0.20 mm (new shear blade to 0.05 mm)The narrowest width: 60 mmThe maximum shear number: 10 (below 1.0 mm cold rolled coil plate thickness)The blade and blade face runout of a spacer must be 0.005 mm or less, the blade inner hole and shaft clearance of 0.05 mm or less, can ensure the cutting number and shear the best quality products.
MATERIAL SPECIFICATIONThe slitting is design for slitting of CRGO&CRNGO Electrical Steel CoilsMaterial tensile strengthσ b≤440Mpa σ 0.2≤280MpaMaterial thickness0.23mm-0.35mmCoil width60-1250mm(max)Coil inside-diameterФ 460 - Ф 520 mmCoil outside-diameterФ 1200 mm (Max.)Coil weighAbout 5T (Max.)Finished product/slit coils specificationCoil inside-diameterФ 508mm ?/span> 20Coil outside-diameterФ 1200 mm (Max.)Width tolerance?span style= ' font-family:Calibri; ' >20mm (when new cutter shearing is 0.05mm)Slitting width60mm(min)Number of strips10strips (when thickness less than 0.5mm)Electric power supply380V/50Hz/3PHElectric power capacityAbout 25KWSlitting speed0-150m/minSlitting mechanismVariable frequency drive
