China Slitting Line and Crosscut Shearing Line

Basic Info

Coil O.D: 1600mm

Line Speed: 0-120m/Min

Trademark: Ansteel

Specification: CE

Origin: China

HS Code: 7326909000

Product Description

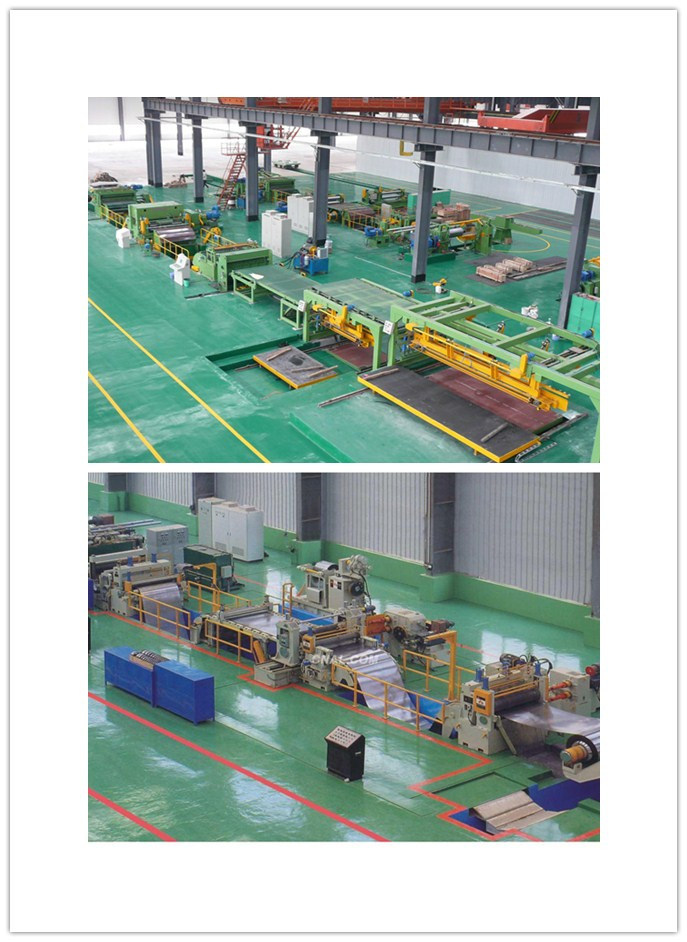

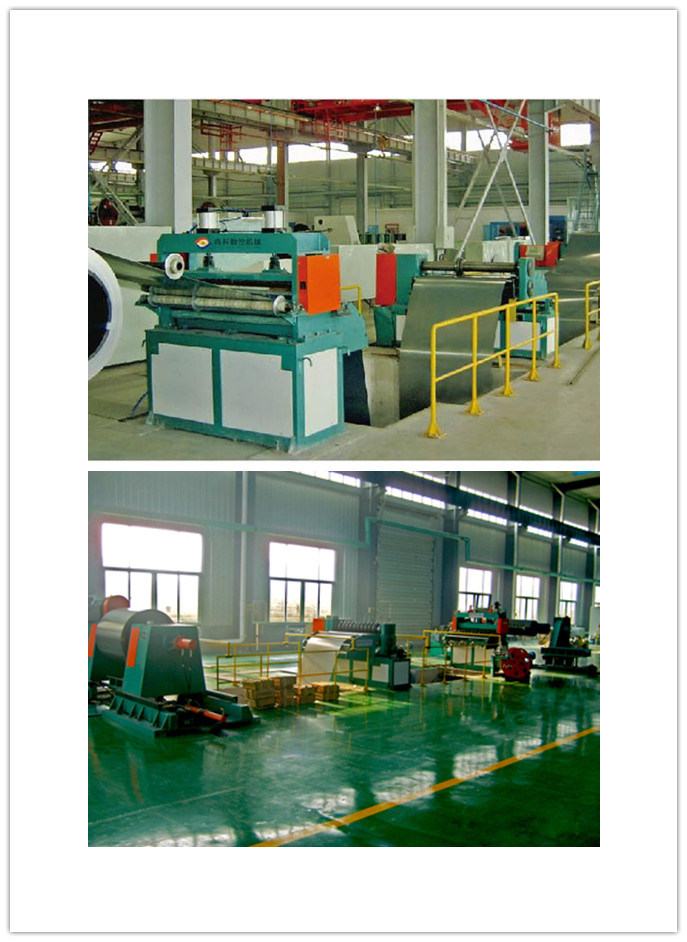

JZ Slitting line / Slitting Machine

Our slitting machine is the slitting equipment designed for plate uncoiling, leveling, slitting and rewinding. Except manual punching, all other processes of the production line are under PLC control, realizing a high level of automation..


Main Components

It is mainly comprised of loading and unloading cars, hydraulic uncoiler, straight head feeding machine, corrective mechanism, leveling traction machine, shearing machine, slitter, scrap winder, material separator, tensioner, material pressing device, hydraulic system, and electrical system.

We can design them as per customers' requirements in terms of panel shape, specifications and configuration.

Item

Parametaers

Model

JZ-

3X1600

JZ-

6x1600

JZ-

6x1600A

JZ-

8x1600

JZ-

12x2200

JZ-

16x2200

May process the board is thick(mm)

0.3-3.0

1.0-6.0

1.0-6.0

2.0-8.0

2.0-12.0

3.0-16

Is suitable the volume is heavy (T)

35

35

35

35

35

40

Width (mm)

800-1600

800-1600

800-1600

800-1600

800-2200

1000-2200

Finished product min.width (mm)

35

40

40

50

70

70

Line speed(m/min)

0-120

0-80

0-60

0-40

0-30

0-20

Installed capacity (kw)

200

220

220

260

260

280

Mechanical area (m)

8x22

10x28

10x28

10x30

10x35

10x38

Cut coil material specificaiton

material

Meatl bard, stainless steel, special-purpose steel copper band and all types of metal

Thickness(mm)

0.1-1.0

0.15-1.5

0.2-2.0

0.2-2.0
