China Solid State High Frequency Welder China Manufacturer

China Solid State High Frequency Welder

Basic Info

• Type: Tube Welders
• Trademark: MH
• Origin: China

• Application: Tube Mill
• Specification: SGS

Product Description

Functional structure
The solid state high frequency equipment mainly used for HF welded steel pipe line,
it is a typical AC-DC-AC variable frequency structure. Rectifier adopts 3-phase bridge style thyristor phase-control rectifier circuit, DC side adopts inductor,
capacitor to compose LC filter which meet the working requirements of voltage type inverter.
The voltage type inverter adopts modularization parallel structure to extend power supply power,
each inverter module is single phase MOSFET bridge style circuit connected with series resonance tank circuit
by H.F. matching transformer.

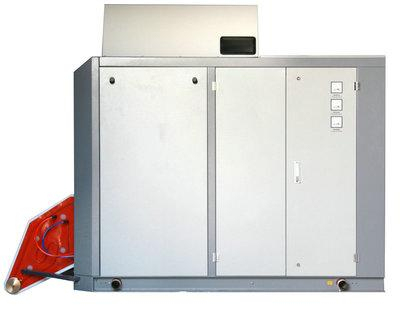

On>The whole set of solid state H.F. welder comprises of switchgear rectifying cabinet,
inverter output cabinet, connecting optical fiber, circulation soft water cooling system,

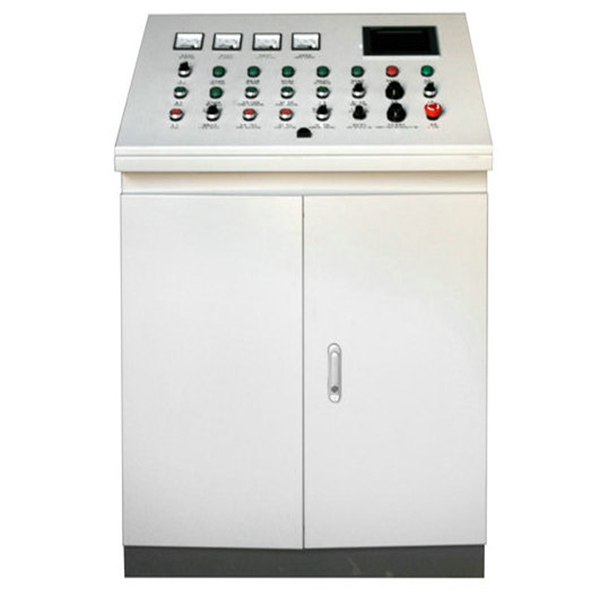

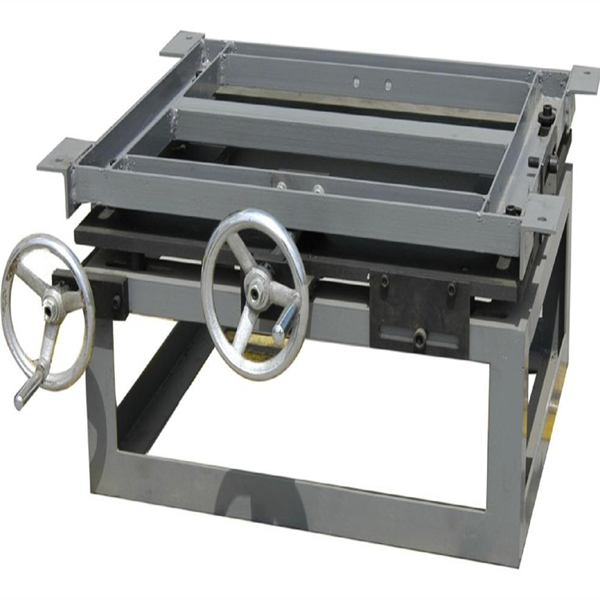

central operator console, mechanical adjustment device,
contact welding pole plate and contact pin (contact welding) and etc
Range of application
Steel pipe welding, stainless pipe welding, aluminium tube welding,
copper tube welding, H-beam welding and special pipe welding.




