China Stainless Steel Almonds Milk, Juice, Peanut Butter Making Machine China Manufacturer

China Stainless Steel Almonds Milk, Juice, Peanut Butter Making Machine

Basic Info

Model NO.: JM series

Condition: New

Customized: Customized

Surface Finish: Polishing Finish

Output: 0.01-10t/H

Material: Ss304 or Ss316L

Package: Wooden Case

Trademark: Flowtam

Transport Package: Standard Export Package

Specification: ISO & CE

Origin: China

HS Code: 8479820090

Product Description

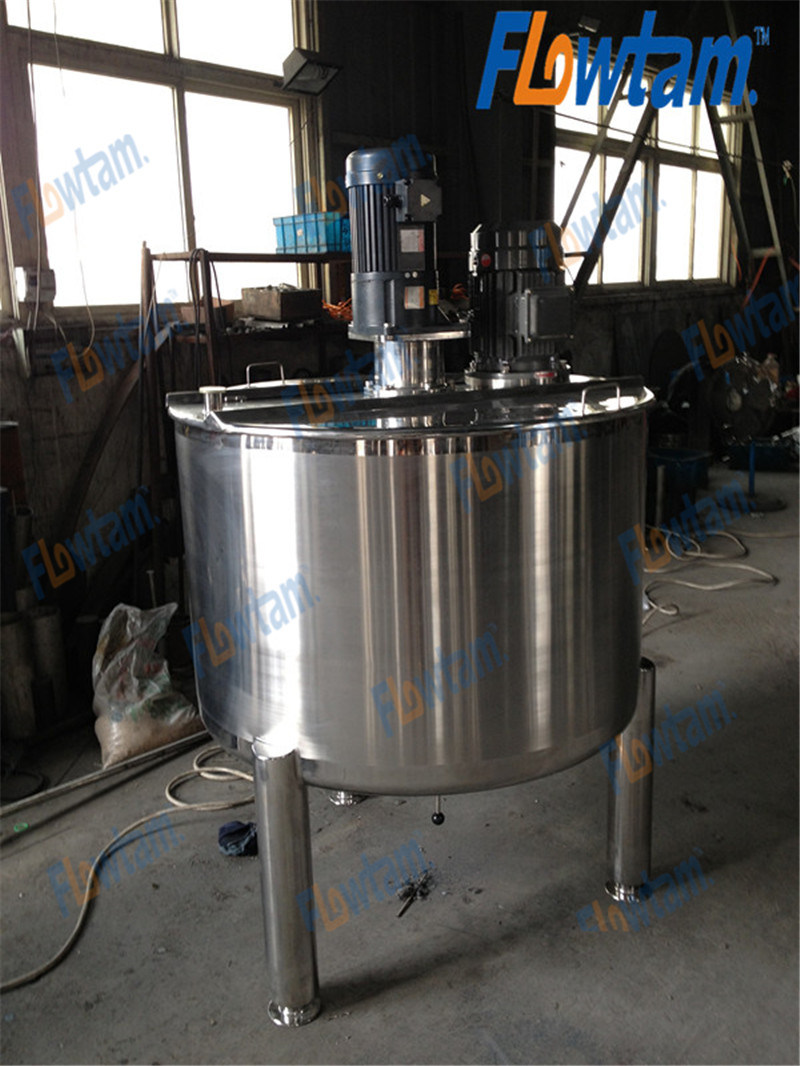

Stainless Steel Emulsifying Mixing Tank:
* Model: BRG-200
* Material: SS316L or SS304
* Capacity: 200L ( can be design according to client's requirements )
* Single layer: 3mm ( can be design )
* With emulsifier and scraper ( can be design )
* Motor with CE certificate, UL certificate etc. ( can be according to client's requirements )
* All Pipe with high quality Nitrogen welded, Motor with stainless steel cover.

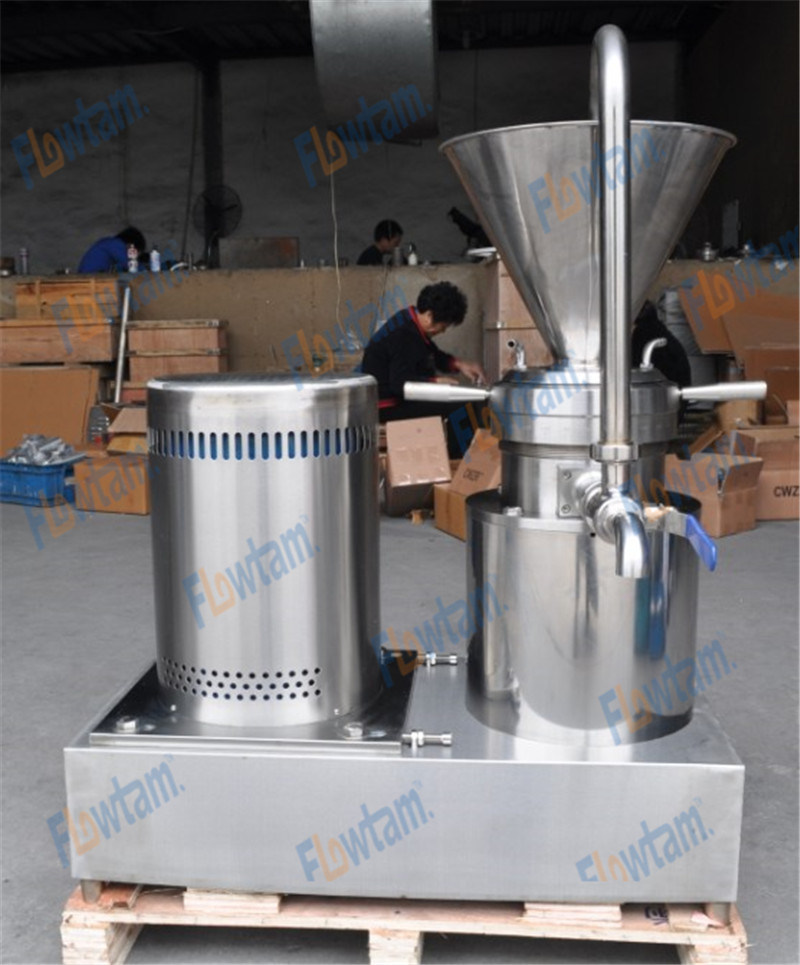

Colloid Mill :
* Model: JMF-120 (Split Case Type)
* Material: SS316L or SS304
* Output: 0.5-3T/H ( can be design )
* Millstone Diam.: 120mm
* Cooling water pipe: 12mm
* Outlet Diam.: 32mm (can be design)
* Inlet Diam.: 66mm
* Speed: 2800rpm
* Sharp power: 7.5 KW ( can be design )
* Motor with CE certificate ( can be according to client's requirements )
* All Pipe with high quality Nitrogen welded , Motor with stainless steel cover.

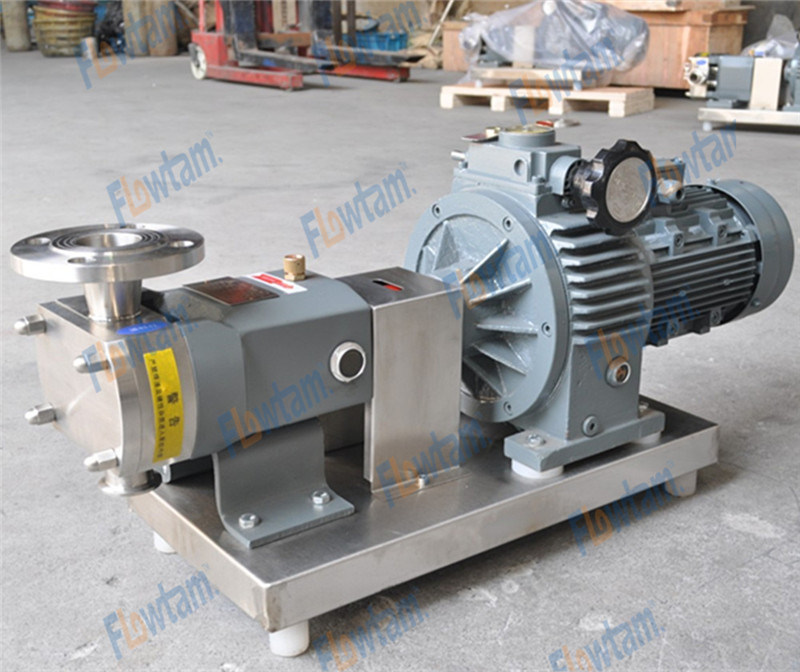

Rotor lobe Pump :
* Model: BLS-8
* Flow(H2O): 650-1600L/H ( can be design )
* Power: 0.75KW ( can be design )
* Speed: 200-500rpm
* Voltage: can be design
* China with CE certificate ( can be according to client's requirements )
* All Pipe with high quality Nitrogen welded, Motor with stainless steel cover

ModelEmulsified
size (um)Output
(T/H)Millstone
Dia. (mm)Cooling water
pipe
(mm)Outlet Dia.(mm)Inlet Dia.
(mm)Speed
( rmp)Sharp(kw)Size (mm)Weight (KG)JML-502-400.01-0.15010203028001.5(220V)270*500*70055JML-502-40

10203028001.1(380V)255*500*70050JML-652-400.02-0.56510203028001.5270*500*70057JML-652-40

10203028002.2500*345*67570JMW-802-400.3-18012254828003630*380*79075JML-802-40

12254828003335*570*92085JMF-802-40

12254828004700*570*920140JMW-1002-400.5-210012256628005.5680*370*900115JML-1002-40

12256628005.5390*645*980145JMF-1002-40

12256628005.5/7.5800*645*980230JMW-1202-400.5-312012326628007.5680*370*900120JML-1202-40

12326628007.5390*645*980150JMF-1202-40

12326628007.5800*645*980240JMW-1402-400.5-414012326628007.5680*370*900160JML-1402-40

12326628007.5390*745*1020180JMF-1402-40

12326628007.5/11800*750*1020290JMF-1802-401-71801238100280011/15900*850*1200360JMF-2002-401-102001238100280015/18.5900*850*1200400
