China Stainless Steel Coil Slitting Line, Coil Slitting Machine, Slitting Machine Line
Basic Info
- Model NO.: BE
- Application: Machinery & Hardware
- Type for Fold-bending Machine: CNC Fold-bend Machine
- Automation: Automatic
- Condition: New
- Brand Name: Besco
- After-Sales Service Provided: Engineers Available to Service Machinery Overseas
- Max. Cutting Thickness: 6mm
- Power: Hydraulic
- Trademark: Besco
- Origin: China
- Type: Cutting Machine
- Type for Cutting Machine: Hydraulic Cutting Machine
- Certification: CE, ISO 9001:2000
- Type for Pipe and Tube Bending Machine: Digital Pipe Bender
- Model Number: Be
- Warranty: All Life,1>stainless steel coil slitting line, coil slitting machine, slitting machine line

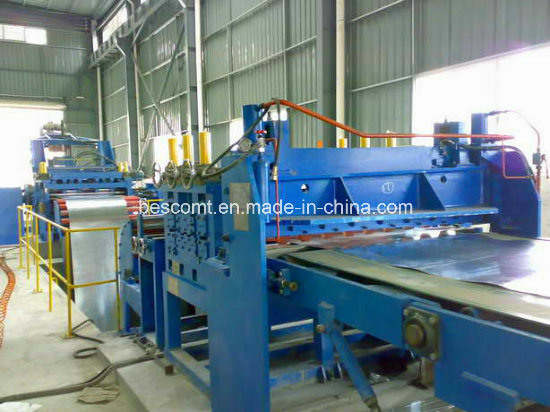

Cut To Length Line
We offer various standard models of cut-to-length lines. These lines can be cut from ranges of 0.5mm up to 3mm in length with different coil widths weights. Each of these lines can be custom tailored to meet specific production needs.Ferrous and non-ferrous metals such as hot and cold rolled carbon steel, stainless steel, aluminum, brass, copper, galvanized metals, and different kinds of alloys can all be cut by these lines.
Sunfone will tirelessly assist its customers to make sure that they are receiving the highest quality products at the most economically available pricing.
Thanks to the most advanced CNC (Computerized Numerical Control) and AC Servo Drive Technology, combined with the fully automatic hydraulic controlled un-coiler; we ensure that our CNC Cut-to-Length machine is able to handle all tough cutting jobs for sheet metals with high speed, greater accuracy, improved efficiency, simple operation, and less manpower.
- Greater cutting accuracy
- Improved Reliability
- Planned production
- Flexible processing alternative
- High speed CNC (Computer Numerical Control) and AC Servo Drive System for better positioning, cutting accuracy, and reliability.
- High-resolution graphic monitor for the plant floor man-machine (MM) message handling and display.
- Programmable function keys for specific tasks.
- Cutting functions can be selected in either auto or manual mode. In auto mode, the system is able to make single step and/or continual operations.
- You are able to set; cutting length, quantity, job number, and parameter adjustmentvia the front panel screen.
- A dedicated screen / menu that can be used by the operator for: job numbers, cutting length, quantity, and for setting operational parameters.
-
Parameters:
Applicable leveling thickness0.5-3mmApplicable leveling width800-2000mmInside diameter of coil500-700mmOutside diameter of coil1000-2200mmFeeding rate:90m-120m/minMax. weight of coil15Ton Cutting accuracy:?.5mm Diagonal accuracy?1mm
Slitting Line

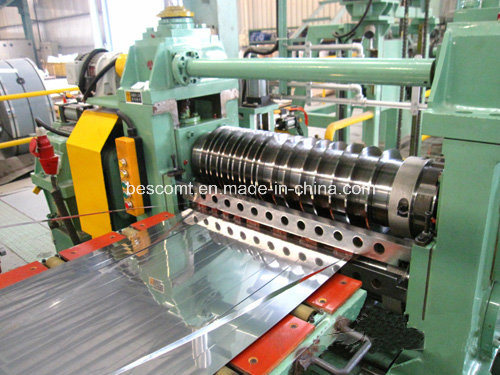

A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.
Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

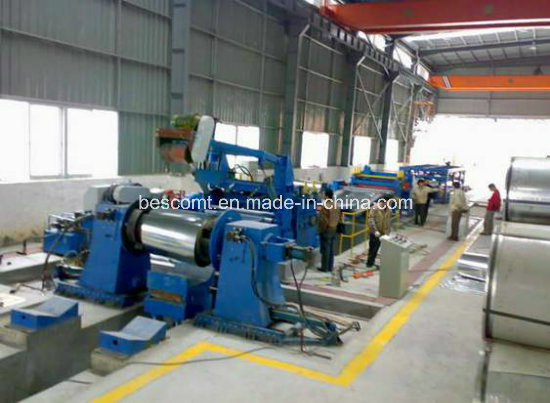

A slitting line is composed of:
1.Loading coil car 2.Uncoiler 3.Straightener device 4.Pinch roll&leveler & hydraulic shearer 5.Loop pit 6.Side guide 7.Slitter 8.Transition platform & scrap winder 9.Loop pit 10.Tension station 11.Recoiler 12.Unloading coil car
Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1950mm.
Main technical parameter
Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.
Material thickness:0.3-3.0mm
Material width:800-1950mm
Coil I.D.: Φ508mm/Φ610mm
Coil O.D.: ≤Φ2000mm
Coil weight:20 tons max
Narrowest strip width slit into: 25mm (strip thickness≤1mm)
Width cutting precision: ?.05mm(strip thickness≤1), ?.1mm(strip thickness>1.5mm)
Slitting Bur: 0.03minimum, 5% of the trip thickness
No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)
Line working speed: 150m/min max
Total power: Approx.210kw
The parameters mentioned above will vary even for the same model as the specific requirements differ.
Please contact us for more information to suit your specific need.
Below is part of the models designed by FOT slitting.
Model
Strip Thickness
Strip Width
Coil Weight
Speed
Total power
Area Occupied
(mm)
(mm)
(ton)
(m/min)
(kw)
(m)
450
0.15-3.0
200-420
4 MAX
0-120
55
13X4
650
0.2-3.0
300-620
7 MAX
0-120
96
15X4
850
0.3-3.0
300-800
8 MAX
0-120
100
15X5
1350
0.3-6.0
300-1300
15MAX
0-180
230
20X8
1650
2.0-8.0
600-1600
20 MAX
0-120
380
33X12
2000
2.0-8.0
800-1950
35 MAX
0-120
550
37X17
