China Steel Cut to Length Machine Line China Manufacturer

China Steel Cut to Length Machine Line

Basic Info

Model NO.: JTXE-300

Feeding Speed: 180m/Min

Installed Power: 10kw

PLC: Mitsubishi, or Siemens

Certificate: ISO

Trademark: XIEER

Transport Package: Seaworthy Packing

Origin: Jiangyin

HS Code: 84623910

Product Description

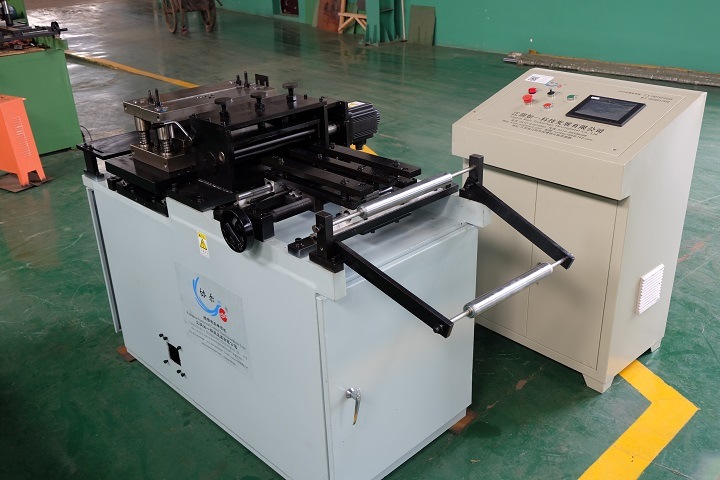

JTXE-300 Cut to Length Line
Cut to Length Line Process Introduction

The reactor silicon steel cutting line can be used for the automatic production of the chip type, and adopts the imported servo control technology, fast speed, lower noise and long life. This equipment is a mechanic photoelectric high-tech product, representing the high standard of domestic silicon steel sheet traverse cutting devices.

Cut to Length Line Equipment Composition
1) electric material feeding trolley
2) hydraulic harmomegathus material rack
3) buffer pit
4) material picking device
5) activity guide device
6) slitting line main euipment
7) picking material intermediater bridge
8) expanding device
9) hydraulic harmomegathus rolling equipment
10) electric unloading trolley
11) hydraulic station and air system
12) electric cabinet and operation platform

Cut to Length Line ParametersModel NameJTXE-300JTXE-400JTXE-600Cutting Thickness(mm)0.23-0.50.23-0.50.23-0.5Cutting Width(mm)40-30040-40040-600Cutting Length(mm)10-999910-999910-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.05?.05?.05Total Motor Power(KW)101012
