China Steel Plate Leveling Machine/Metal Cut to Length Line China Manufacturer

China Steel Plate Leveling Machine/Metal Cut to Length Line

Basic Info

• Model NO.: ZJ3-20
• Raw Material: Steel, Aluminum, Copper, etc
• Width of Plate: 500-2500mm
• Roll Weight: 7/15-35t
• Power: Hydraulic
• Certification: Ce, SGS
• Transport Package: Naked Package and Fixed in The Container
• Origin: China

• Product Name: Steel Cut to Length Line Machine
• Thickness of Plate: 0.2-25mm
• Shearing Precision: 0.3-3mm
• Shearing Velocity: 15-60m/Min
• Warranty:>Steel plate leveling machine/metal cut to length line
  6-25mm Thick leveling line series


  3-25mm medium-plate cut to length line machine


  High speed cut to length line machine
  Product Description
  A flat sheet of material is not actually produced by a mill as a flat sheet. In reality, a flat sheet of material starts its life as part of a coil of material.
  A Cut-To-Length Line / Blanking Line will uncoil the material, level it, and then cut it to the required length and stack it. The end product produced by a Cut-To-Length Line / Blanking Line is a flat sheet of material cut to a very precise length tolerance. When considering a Cut-To-Length / Blanking Line and the proper line configuration for your application, there are several variables you should consider. The thickness of the material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation. Light Gage Systems typically process material up to 0.138 ' (3.5 mm) thick, while Medium Gage Systems process material up to 0.315 ' (8 mm) thick.

  The Components of Cut to length machine

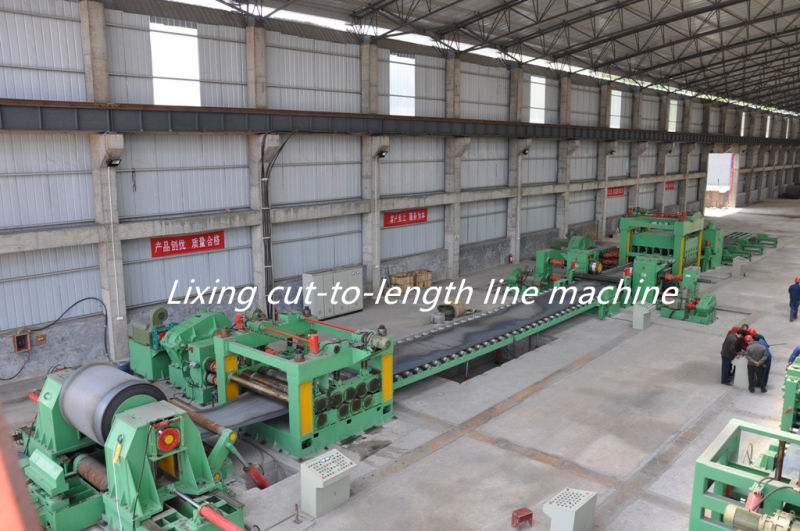

  Cut to length machine is high-speed and precise with workstations for uncoiling, straightening, measuring, cross-cutting to length and stacking.

  Feeding car -- Uncoiler -- Leading head, pressure head -- Shovel head -- Feeding device -- straightening device -- 13-roller leveling machine -- Horizontal cutting machine-- Extractor unit -- Discharging car-- Electronic control system-- Hydraulic system

  The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider.

  Specification sheetThickness
  (mm)Width
  (mm)Shearing
  Precision (mm)Max. Shearing velocity(m/min)Roll weight
  (ton)0.2-2500-1800 0.3607/15-20T0.5-3500-2000 0.35015-30T1-6900-2000 13020-30T2-8900-2000 12530T3-12900-2000 1.52030T4-16900-2000 21530T6-201000-2500 31535T8-251000-2500 31535T

  Related Products

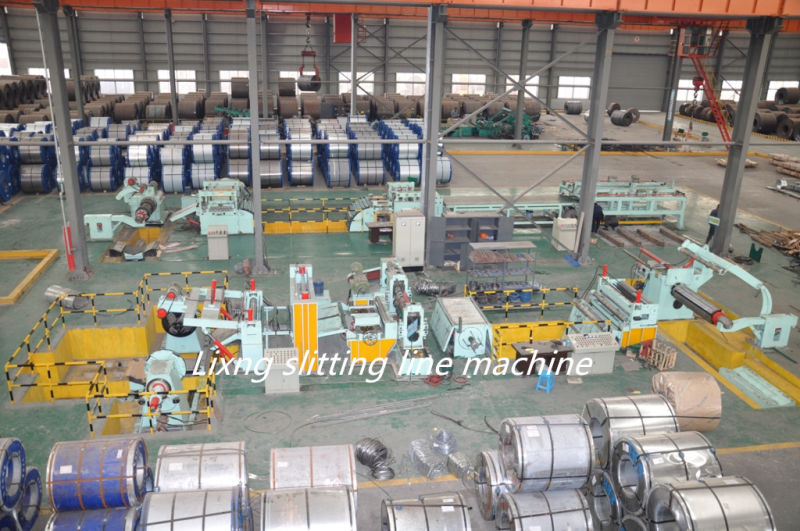

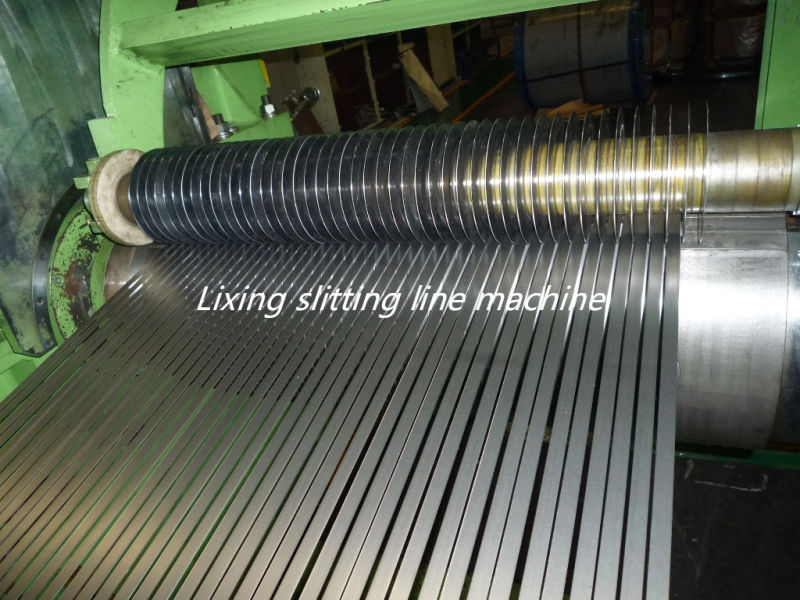

  A. Slitting Line Machine

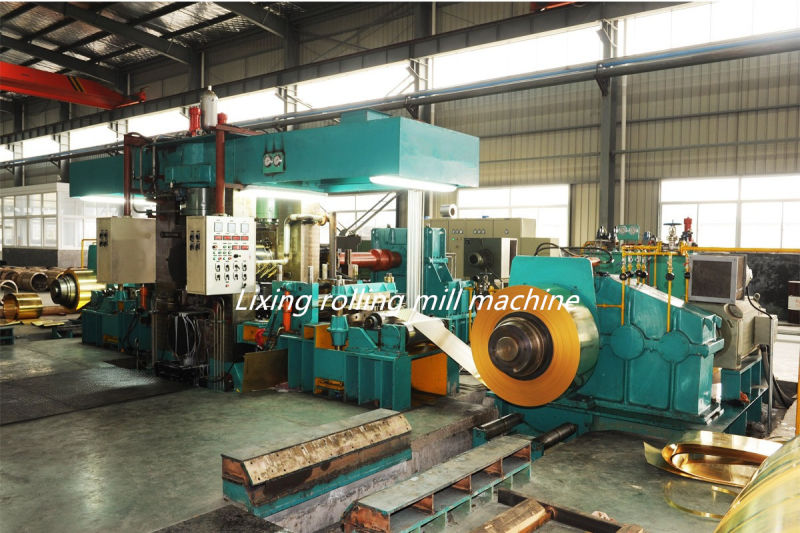

  B. Rolling Mill Machine


  Company Introduction
  Lixing Metallurgy Machinery Co., Ltd, professionally works>!!Please contact us if you have any inquiry
  Elisa



  


  

  Wuxi Lixing Metallurgy Machinery Co., Ltd.

  Jiangsu, China

  Manufacturer/Factory


  Gold Member Since 2008


  Audited Supplier

  • Factory Tour

  Main Products: Cut to Length Line, Slitting Machine, Rolling Mill Machine, Steel Precessing Machine, Steel Slitting Machine, Steel Cut to Length Machine, Steel Rolling Mill Machine, Steel Coil Slitting Machine, Steel Plate Cut to Length Machine, Steel Strip Rolling Mill Machine
