China Step Lap Cut to Length Line with O Punching China Manufacturer

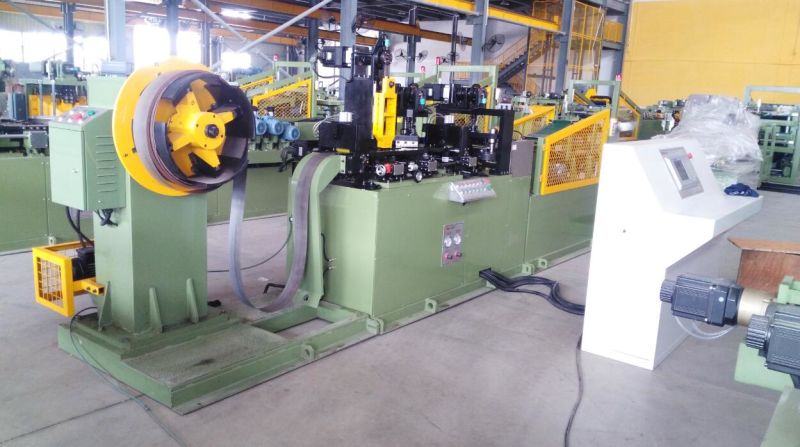

China Step Lap Cut to Length Line with O Punching

Basic Info

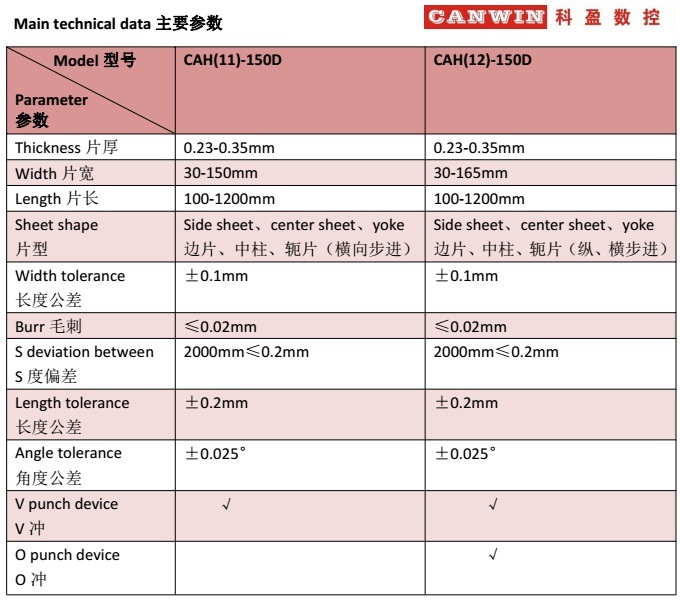

  • Model NO.: CAH(12)-150D
  • Origin: China
  • Trademark: CANWIN
  • HS Code: 84623120

Product Description

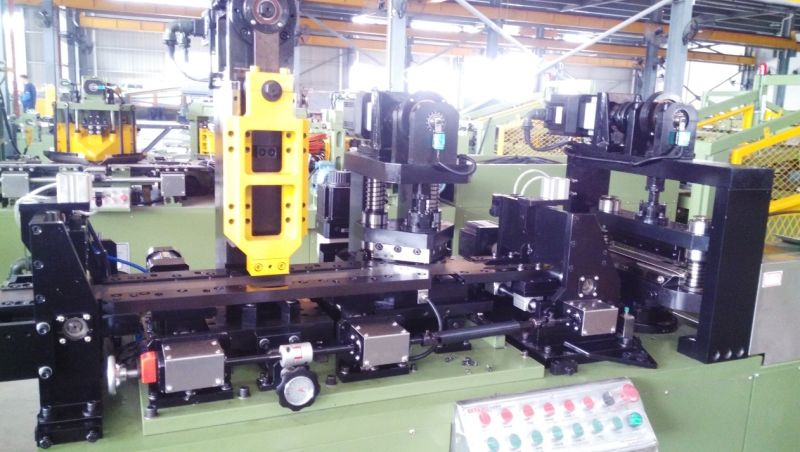

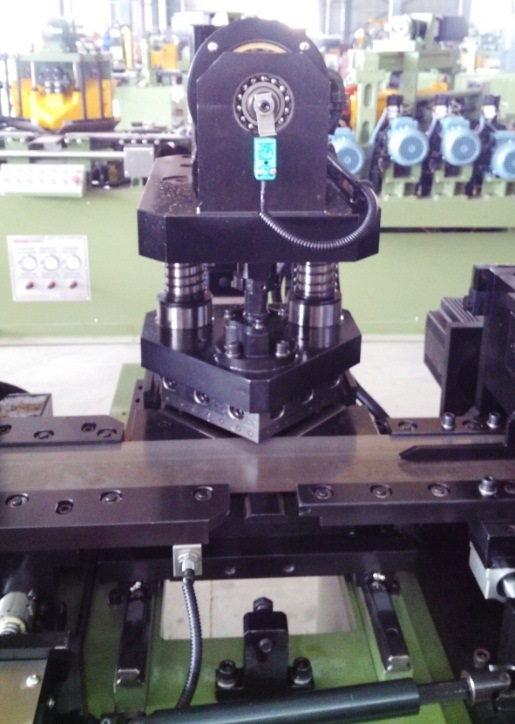

punching section1) servo motor driver, square linear guide and high-speed action;2) the rapid replacement of punching abrasive, achieve 200000 shearing;3) manually adjust the vertical movement, position indicator shows that the adjusting data;4) which can realize small dry type transformer iron core of the punching process and reactor type of punching and shearing functions.

V press section1) using imported round straight guide pillar, and the buffer spring to achieve high efficiency, low noise;2) V is driven by servo motor bearing coupling impact and shear action, longitudinal mobile also adopt servo motor motor control, and is equipped with a precision linear guide.(3) knife mold) using cemented carbide cutting tools, grinding every use should not less than 1 million times, lack of depth by 15 mm - 75 mm

The control systemMaterial control table points are: electric GuiZhu manipulation of the auxiliary mesa mesa and manual buttons.1) the operating system adopts imported CNC control procedures, can satisfy CNC shearing, Chinese type man-machine interface, can be set shear length, number of shear rate, shear, fine-tuning data, cut different shape.2) large control system, realize the numerical control equipment, automation, improve production efficiency to ensure production quality.3) according to the surplus company many years of design experience, control programming operators more easily grasp skilled operation.4) positive auxiliary work station is located in the machine tool, which can be manually feeder clamp and open, manual V blunt shear and mobile and pendulum shear action.5) auxiliary work station in operation personnel debugging equipment, ready to automatic shear before work.6) auxiliary set bottom side is equipped with pneumatic debugging mesa, convenient debugging shunt pressure and flow rate, the pneumatic movements can be controlled by the CNC program automatically.

GUANGDONG CANWIN AUTOMATIC EQUIPMENT CO., LTD.

Guangdong, China

Manufacturer/Factory, Trading Company


Gold Member Since 2017


Audited Supplier

  • OEM/ODM Service
  • Factory Tour

Main Products: Cut to Length Line, Slitting Line
