China Straightener, Edge Polishing Cut to Length Line

Basic Info

• Model NO.: BE
• Layout: Horizontal
• Automatic Grade: Automatic
• Cutting Mode: Cutting Machine
• Brand Name: Besco
• After-Sales Service Provided: Engineers Available to Service Machinery Overseas
• Max. Cutting Thickness: 6mm
• Power: Hydraulic
• Trademark: Besco
• Specification: CE, ISQ
• HS Code: 84623990

• Customized: Customized
• Cutting Material: Copper
• Power Source: Hydraulic Pressure
• Model Number: Be
• Warranty: All Life,1 height= ' 447px ' width= ' 609px ' srcid= ' 36394842 ' src= ' /upLoad/et30180302205262.jpg ' />
  straightener, edge polishing cut to length line

  General
  This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length. The production line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line's work, the operation is convenient and easy.
  Suitable material: HR coil, CR coil, pickling coil, galvanized steel, etc
  Coil thickness: 1-6mm (δb≤600Mpa, δs≤450Mpa)
  Coil width: 600mm-1600mm
  Coil I.D: Φ508mm, Φ610mm, Φ760mm,
  Coil O.D: Φ2000mm (max.)
  Coil weight: 30,000kg
  Process Description

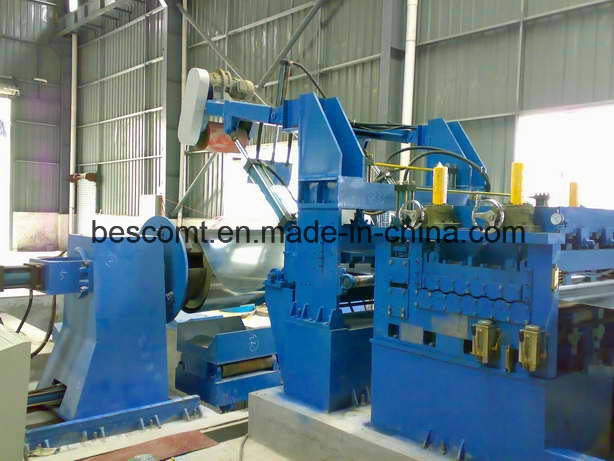

  The sheet coil is loaded & elevated to appropriate position of the mandrel, and pushed into the decoiler by movement of feeding trolley automatically.

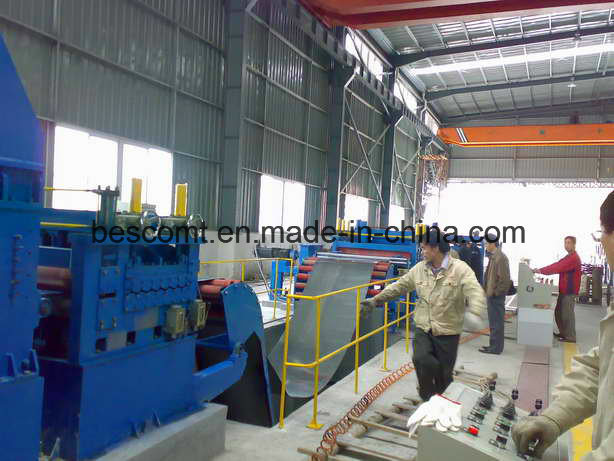

  The steel sheet is fed into leveler through guiding device, like traction head, peeler. Then the sheet is advance leveled by pinch roll 5roll leveler, later down to the buffer pit. By adjusting the correct device to centring of the sheet, it goes through into precision 15 roll leveler for leveling & length measuring, and then the cutting machine to cut the sheet into required lenth.
  The sheet is cut into required length controlled by PLC. The finished sheets are transported to stacker, and placed orderly.

  Main Technical Parameters
  1.Material: HR coil, CR coil, galvanized steel
  2.Work speed: 0-30M/min(adjustable)
  3.Gaugelength: 1000-6000 mm, or as per your requirements
  4.Cutting: 5-15 pcs/min(L=2000mm)
  5.Length accuracy: -1mm(L=2000mm)
  6.Diagonal accuracy: - 1.5mm(L=2000mm)
  7.Leveling accuracy: - 1.0mm per sqaure meter
  8.Total power: approx. 155KW
  9.Installation dimension: 45M x 8M x 3M(L x W x H)
  10.Standard power source: AC380V?0%/50Hz
  11.Total weight: about 100 tons (five 40GP containers for shipment)
  12.Paint of the machine: main body in green, moveable units and danger area in yellow (or according to Buyer's demands for the color)
  13.Operators for the machine: 2-4 workers
  14.Running direction (decoiling direction): depends>
  


  
