China Supplier Made Slitting Line in Dongguan City China Manufacturer

China Supplier Made Slitting Line in Dongguan City

Basic Info

  • Model NO.: KST 0.3-2.5*1300
  • Usage: Sheet
  • Automatic Grade: Automatic
  • Certification: TUV, ISO9001, CE
  • Customized: Customized
  • Strip Thickness: 0.3-2.5mm
  • Stacker Length: 300-4000mm
  • Strip Weight: 10000-30000kg
  • Transport Package: Wooden Packing
  • Type: Rotating Anti-Bending and Straightening Machine
  • Voltage: 380V
  • Principle: Large Deformation
  • Warranty: 12 Months
  • Condition: New
  • Strip Width: 300-1850mm
  • Feeding Speed: 0-90m/Min
  • Trademark: KUSTAM
  • Origin: China Dongguan

Product Description

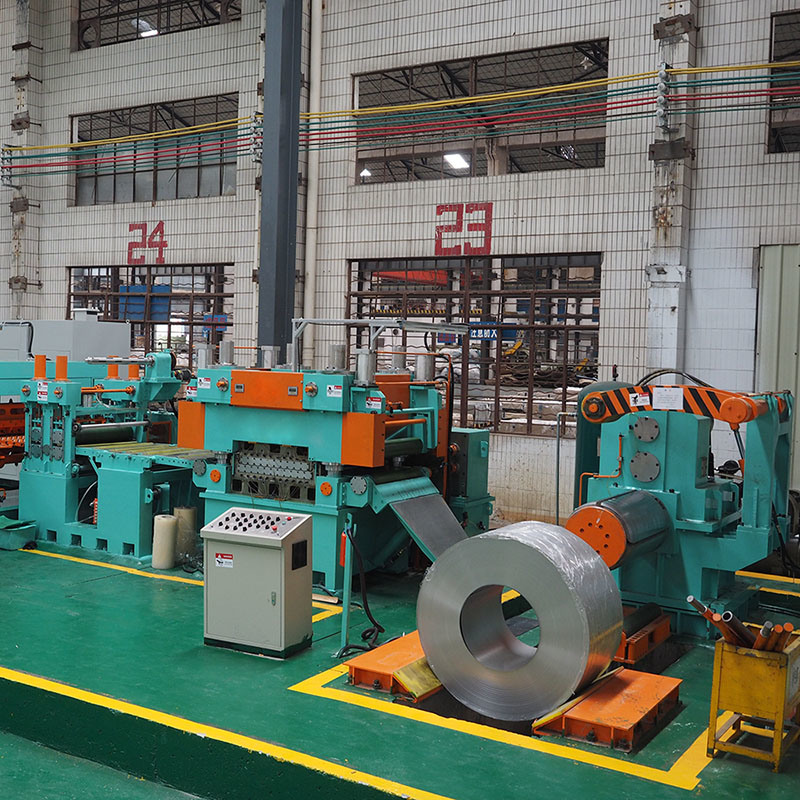

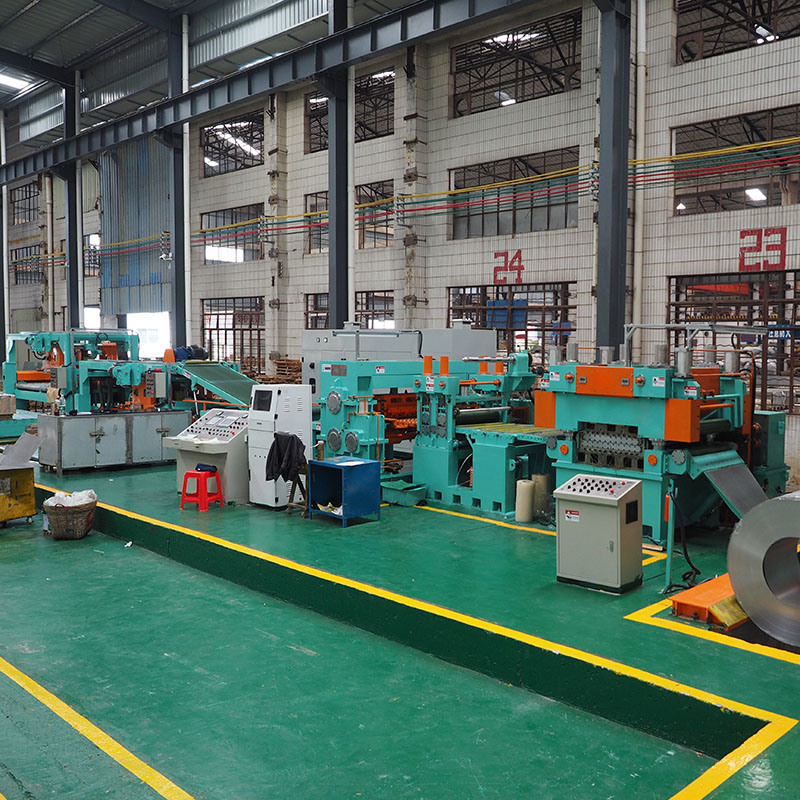

China supplier made Slitting line in Dongguan city

Composition:
1.Storage saddle
2.Coil car
3.Auxiliary support
4.Hydraulic decoiler

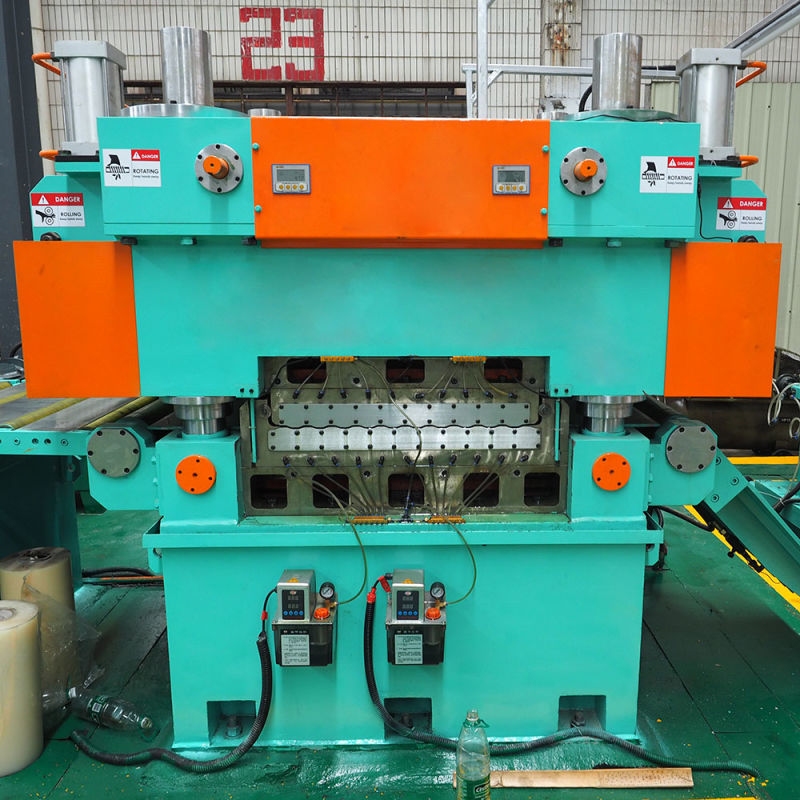

5. 6Hi leveler
6.Looping pit table
7.Length measuring device

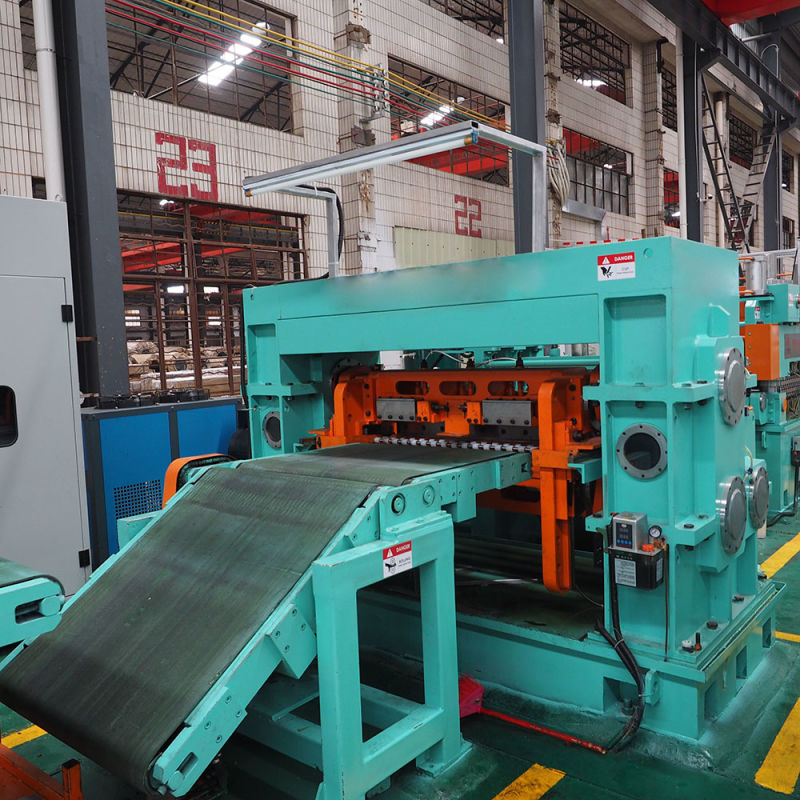

8.Start-stop shear
9.Conveyor
10.Stacker
11.Hydraulic system
12.Pneumatic system
13.Electric control system

Material Parameters:NO.ItemValue1MaterialStainless Steel2Material thickness0.2~2.0 mm3Material width200~1600 mm4Coil O.D≤Φ2300 mm5Coil I.DΦ480 mm~Φ520 mm6Coil weight20T

Product Parameters:NO.ItemValue1Stacking WeightMax:8T2Product Accuracy?.4 mm3Product burr≤0.05 mm4Min. Shearing Length200 mm

Main Parameters:ModelKST 0.14-1.2KST 0.2-2.0KST 0.3-3.0KST 0.5-4.0Material Thickness mm0.14-1.20.2-2.00.3-3.00.5-4.0Material Width mm300-1850300-1850300-1850300-1850Stacker Length mm300-4000300-4000500-6000500-6000Shear length accuracy mmDiagonal accuracy mmLeveling Accuracy mm/m?/span><1<1<1<1Feeding line speed m/min0 - 900 - 900 - 800 - 65Material weight T10-2510-2515-3015-30
