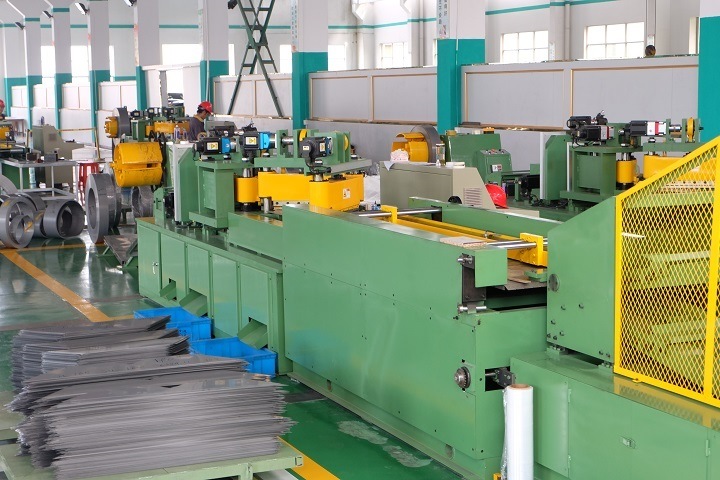

JTXE-LL-400 Silicon Steel Cut to Length Line
Cut to Length Line Process Introduction

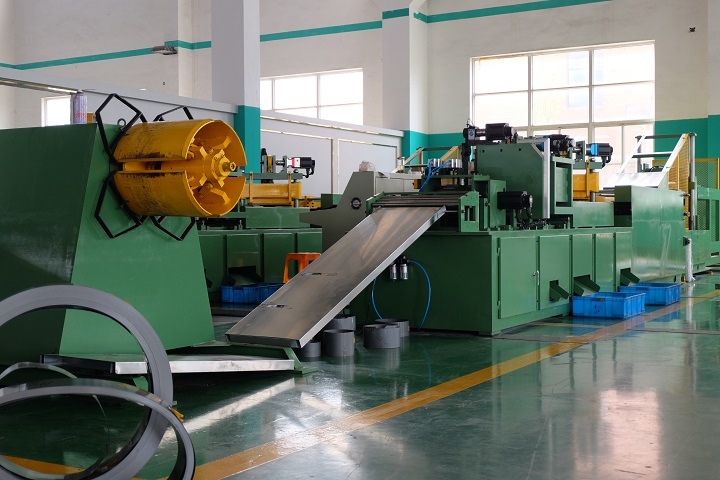

Two shearing two punching silicon steel cutting line with step-lap is an automatic production line for the silicon steel sheet shearing, consists of the following parts:Uncoiler, Feed buffer, Feeder, Punch parts, Shear parts, Conveyor, Material machine, Pneumatic system, Electronic control system.
Cut to Length Line Equipment Composition

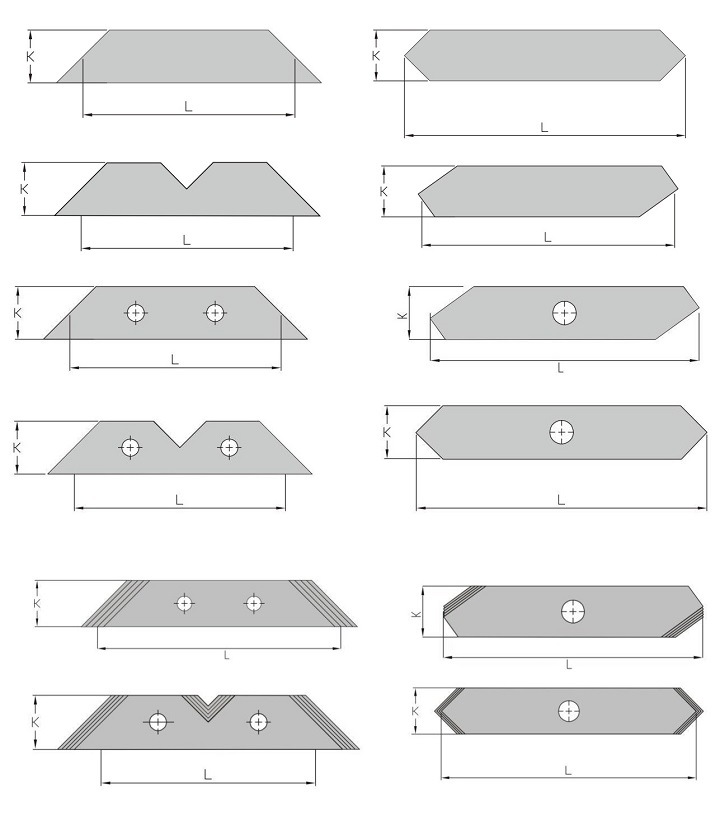

1,SpecificationApplication Materialssilicon steel coilMaterial Width(mm)0.23-0.35Material Width(mm)40-300Coil Inner Diameter(mm)495-510Single Head Coil Weight(t)1.5Feeding Speed(m/min)0-180Cutting Blade MaterialYG11-NCutting Blade HardnessHRA87.8Cutting Blade Density(g/cm3)14.45Cutting Blade Bending Strength(N/mm2)3180
2,The Finished Product Parameters and PictureCut Length(mm)350-9000Length of Tolerance(mm/m)(when in constant speed)?.2/2Cutting Angle Accuracy DEG?.025Cutting Burr(mm)≤0.02Punching Burr(mm)≤0.02
High Speed High Precision Cut to Length Line Parameters
1,High Speed High Precision Slitting LineModel NameJT1250Cutting Thickness(mm)0.23-0.5Cutting Width(mm)40-1200Coil Weight(t)5Feeding Speed(m/min)80-120Straightness Deviation of Each Edge(mm/m)0.1Cutting Angle Accuracy DEG?.025Band Width Accuracy(mm)?.1Total Motor Power(KW)55
2,Precision high speed cut-to-length linenonstop cutting
Two cutting two punching(ordinary type)Model NameJTXE-LL-300JTXE-LL-400Cutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1516.5
Two cutting two punching(step type)Model NameJTXE-LL-300ZJTXE-LL-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2021.5
Two cutting two punching(centralized positioning)Model NameJTXE-LL-400ZXJTXE-LL-600ZXCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-40060-600Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2426
3,Precision high speed cut-to-length linenonstop cutting
Two cutting>Model NameJTXE-X-300JTXE-X-400JTXE-X-600Cutting Thickness(mm)0.23-0.350.23-0.350.23-0.35Cutting Width(mm)40-30040-40060-600Cutting Length(mm)350-9999350-9999350-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.1?.1?.1Total Motor Power(KW)1213.513.5
4,Center Post Silicon Steel Cut to Length Line(step type)Model NameJTXE-ZZ-300ZJTXE-ZZ-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)150-9999150-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1414
5,Electric Reactor Silicon Steel Cut to Length LineModel NameJTXE-300JTXE-400JTXE-600Cutting Thickness(mm)0.23-0.50.23-0.50.23-0.5Cutting Width(mm)40-30040-40040-600Cutting Length(mm)10-999910-999910-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.05?.05?.05Total Motor Power(KW)101012

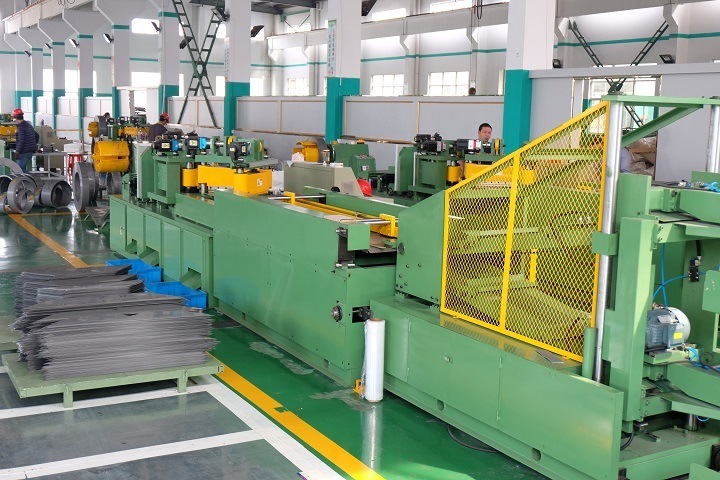

Two Cutting Two Punching Silicon Steel Cut to Length Line Working Process

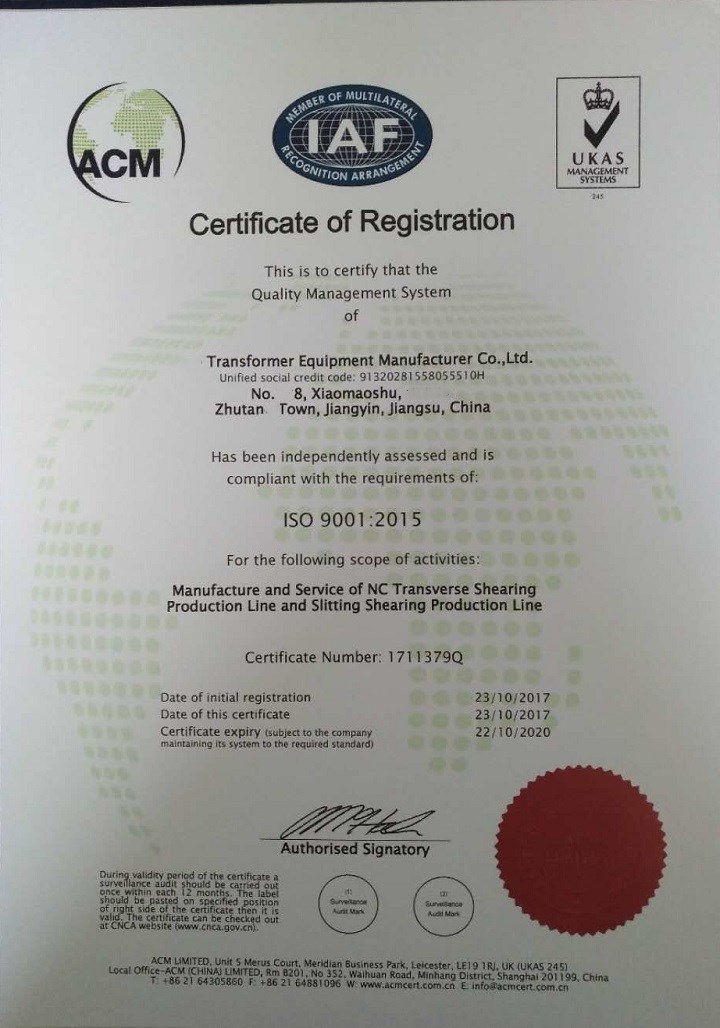

Cut to Length Line Certificate
Cut to Length Line Packaging
