China Two Roll Rubber Mixing Mill Machine for EPDM China Manufacturer

China Two Roll Rubber Mixing Mill Machine for EPDM

Basic Info

• Model NO.: XK-300
• Control Type: PLC
• Power Source: Electric
• Moter Power: 30kw
• Gearbox: Hard Tooth Surface Reducer
• Relay Brand: Schneider
• Transport Package: Wooden Case Steel Frame
• Origin: China

• Warranty: 5 Years
• Automatic Grade: Semi-Automatic
• Type: Open Mixing Mill
• Roller Materials: Chilled Alloy Cast Iron
• Moter Brand: Siemens
• Trademark: RUNNING
• Specification: XK-300
• HS Code: 8477800000

Product Description

Product Description

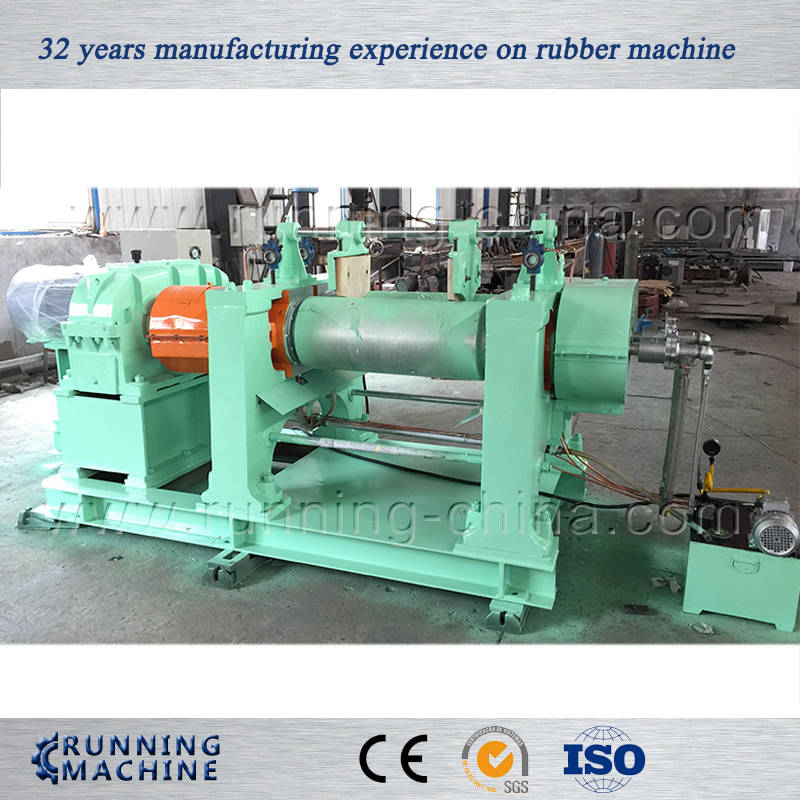

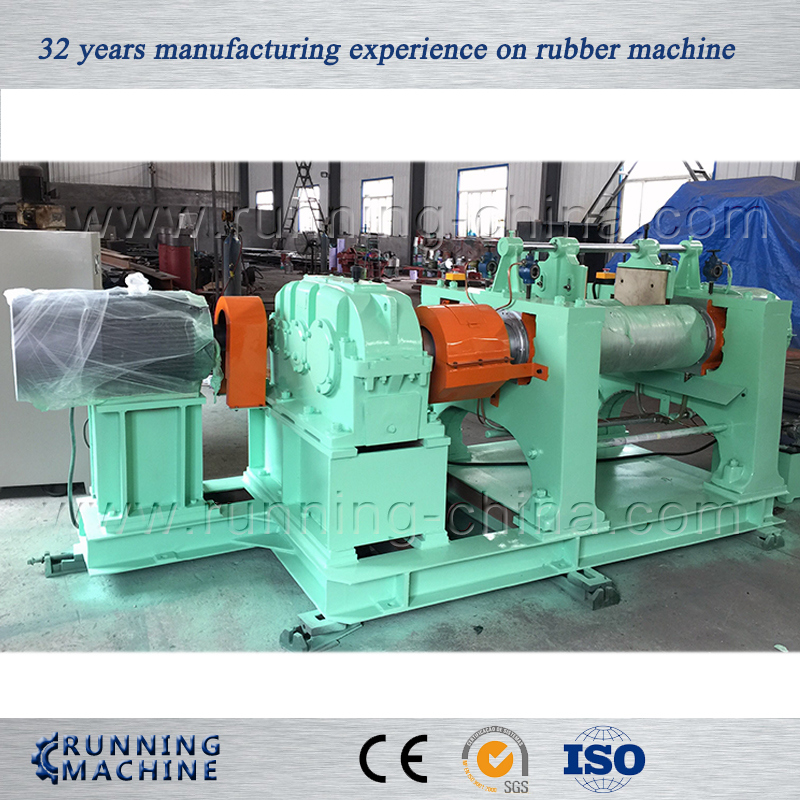

Two Roll Rubber Open Mixing Mill with Hard Tooth Reducer:
The mixing is often done> Application
1. Rubber shoes,soles and heels.
2. Rubber rafts,P.V.C sheet,artificial leather.
3.Rubber/EVA sponge soles.
4. Rubber rain boots and rain wear.
5. Rubber nipples.sports balls.
6. Rubber rollers,rice rollers.
7. Rubber goods for industry.
8. Rubber goods for automobiles.
9. V-belt and conveyor belts.
10.Rubber cushions.
11. Regenerating rubber.

Structural features

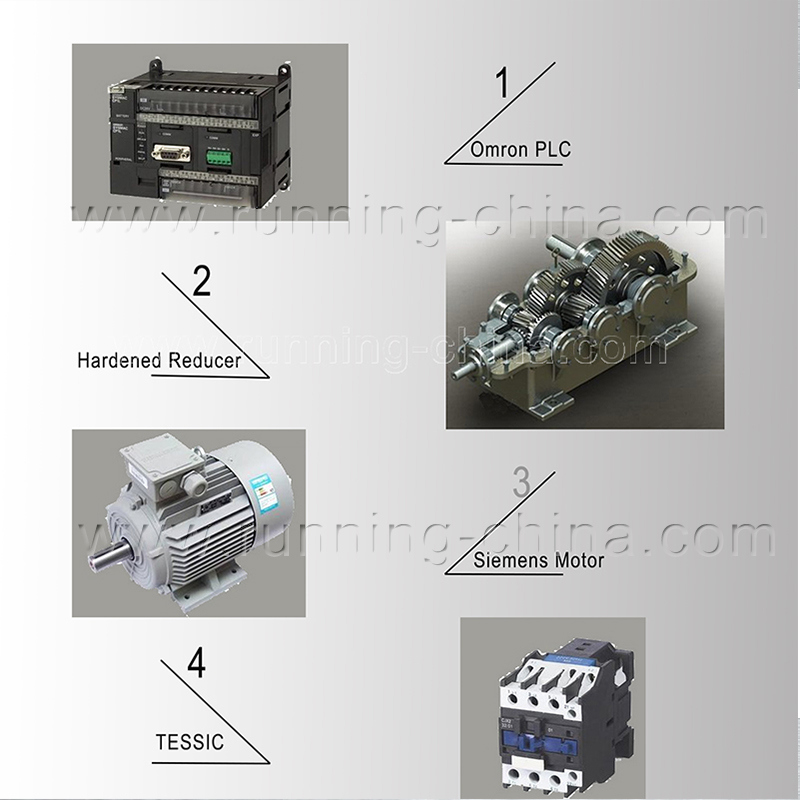

2.1 Compact Open Mixing Machine is ZSY series hardened reducer, six precision carburizing and tooth grinding cylindrical gears, low noise, long life and large endurance; roller bearing using fully automatic lubrication system specially designed sealed structure to eliminate oil spills.
2.2 Have a high degree of humane design: the nearest workspace design, operating system and user-friendly operation and reducing the labor intensity of workers.
2.3 This Compact Open Mixing Machine motor is overall welding pedestal, single shaft drive structure, compact structure, safe and reliable, simple to find the level of equipment when shipped to the client's company, simply connected into the return water pipeline, power line work can be carried out installation and debugging convenient.
2.4 Roller temperature adjustment device: using high quality rotary joint, high pressure hose, water pipe additional shut-off valve to facilitate equipment maintenance, with connection into the backwater pipe bluing and user-friendly plumbing connections.
2.5 Cutting device: the cutting device with two movable blades, users may need to adjust the cutting spacing to have different width rubber sheets.
2.6 Rack, gland: welded steel plate processing after annealing treatment.
2.7 Stock pan: made of welded steel plate.
2.8 Roller: roller using alloy chilled cast iron, the front and rear rollers can be made of hollow light roller, so as to achieve better temperature control. Work surface hardness is 68 - 72HSD.
2.9 Roller bearings: High-precision self-aligning roller bearings.
2.10 Nip adjustment device: manually controllable pitch worm screw driving and have electric and manual two modes.
2.11 Stock guide: steel made fixed type.
2.12 emergency brake: emergency stop button way, rack around with four emergency stop buttons.
2.13 Safety device: safety chip breaking pressure 110 /- 3t to protect the main parts from damage.
2.14 Base: steel plate welded structure, machined after annealing

.

Technical Parameters
ItemXK-160XK-250XK-360XK-400XK-450XK-550XK-560XK-660XK-710Roll diametermm160250360400450550560-510660710Roll working length
320620900100012001500153021302200Front roll linear speedr/min916.316.719.321.822.527.22831.9Speed ratio of rolls
01: 01.401: 01.101: 01.301: 01.301: 01.301: 01.201: 01.201: 01.201: 01.5Max roll spacemm4.5810101216150.5-150.5-15Compound feeding capacitykg1-210-1520-2518-355050-6550-65165190Motor powerkW5.518.530455511090240280Dimensions(L?W?H)

Lmm113327224200492054056646627072808185Wmm92011151780178017402736228234003910Hmm139413451760180017902105200025302270Gross weightT~2~3.2~6.5~8~11.4~22~22.5~49~51
Salient Features

1. Superior Mixing Performance.
2. Low Operating Cost with High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. No continuous Lubrication hence heavy saving>Photo

Services Commitment

1. Our engineers can design target machines for you and send the drawing to confirm.
2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas technical support
6.Test Machine Before Delivery, you>FAQ

1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?

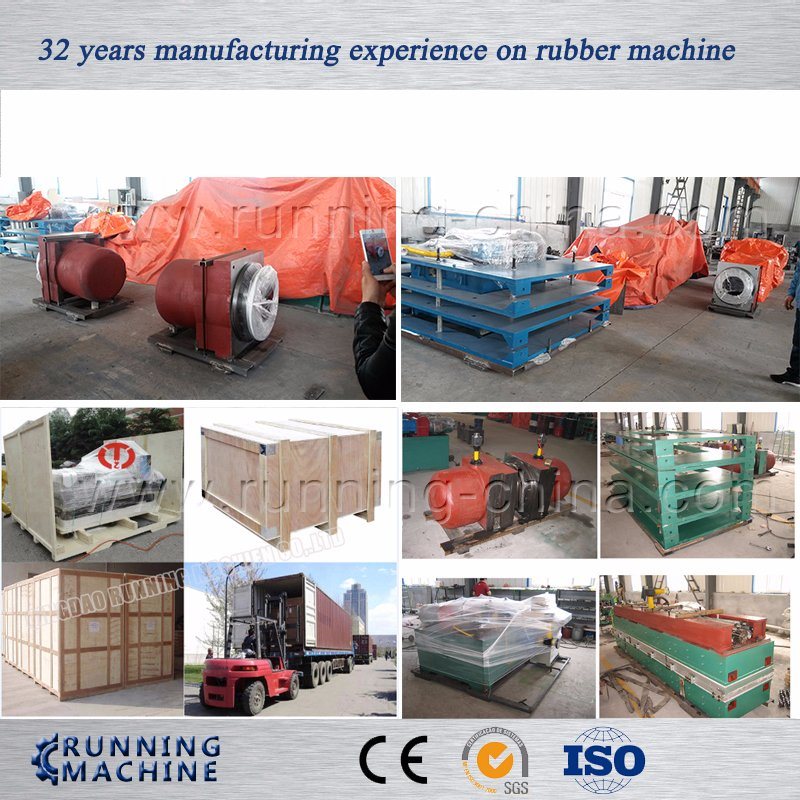

Quality guarantee time is>Our packaging




