China Uncoiling Coil Slitting Line for Plate Further Processing China Manufacturer
China Uncoiling Coil Slitting Line for Plate Further Processing
Basic Info
Model NO.: customized
Production Scope: Product Line
Slitting Machine Color: Customized
Material: Cold-Rolled Mild Steel
Coil Weight: 10,15,20
Voltage: According Customer’s Requirement
Trademark: HUAFEI
Transport Package: Wood Box or as Customer′s Requirement
Specification: As per model
Origin: Jinan, Shandong, China
Product Description
Uncoiling Coil Slitting Line for Plate Further Processing
Product Description

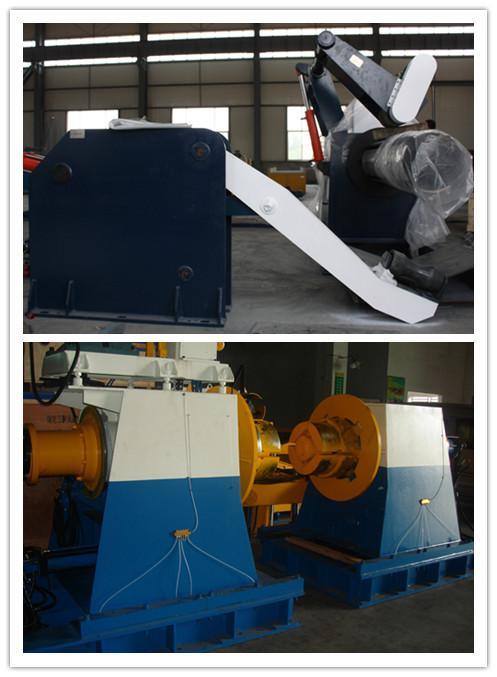

uncoiler: Uncoiling coil plate for further processing.
Material-guiding DeviceGuiding material head into leveler machine.1). Hydraulic swing structure

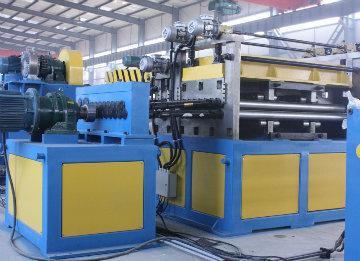

2).Double oil cylinder swingLevelling Machine

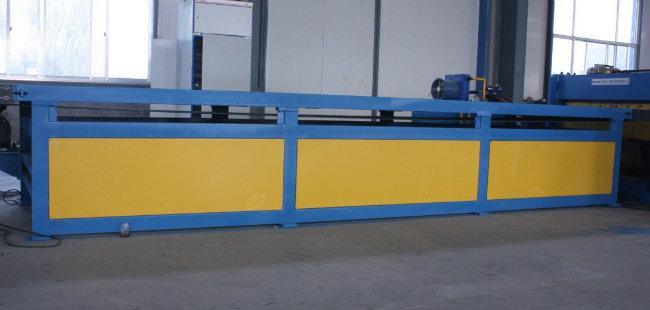

5. Loop Table Functiontransiting material head or end,FeaturesRaised and lowered by oil cylinder

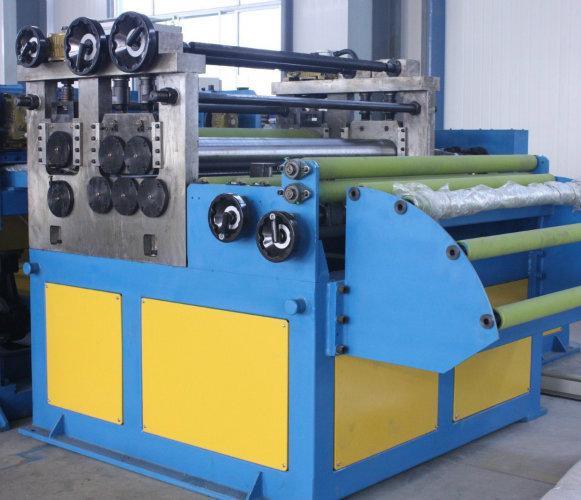

Two pairs of Photo sensors installed to control storage volume. 6. Side GuideCorrecting strip moving direction and preventing it from deflecting. vertical roll guiding 1).2 groups guiding rolls in total.
2).The width adjusted by hand wheel.
3).The material of guiding rolls is of GCr15. Feeding Machine
Preparing material plate into shearing machine.

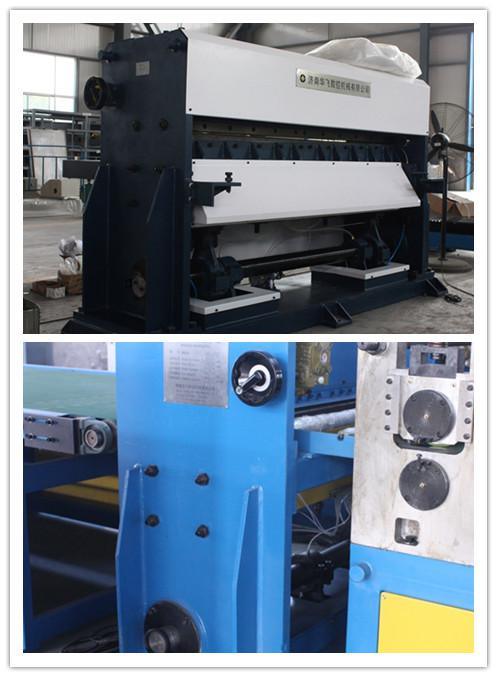

Shearing Machine
Shearing coil plate into required length.
Conveying machine
Conveying plate into stacking device.

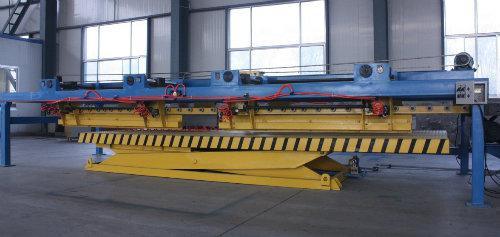

Stacking Device:
stacking the sheared plate.
