Wear Resistant China Horizontal Ball Mills/Tungsten Grinding Ball Mill/Gold Mining Machine, High Quality Gold Mining Machine, Tungsten Grinding Ball Mill China Manufacturer
Wear Resistant China Horizontal Ball Mills/Tungsten Grinding Ball Mill/Gold Mining Machine, High Quality Gold Mining Machine, Tungsten Grinding Ball Mill
Basic Info
- Model NO.: 1500*3500
- Motor Type: AC Motor
- Rotationl Speed: 36-38 R/Min
- Materials: Silicate Cement Building Material
- Name: Wear Resistant China Horizontal Ball Mills
- Transport Package: Standard Export for Building Material
- Origin: Zhengzhou
- Type: Ball Mill
- Motor Power: 75kw
- Application: Mine
- Condition: New
- Trademark: Hengxing
- Specification: 1500*3500
- HS Code: 8474202000
Product Description
Wear Resistant China Horizontal Ball Mills/tungsten Grinding Ball Mill/gold Mining Machine, High Quality Gold Mining Machine, Tungsten Grinding Ball Mill ManufacturingZhengzhou Hengxing Heavy Equipment Co., Ltd. Webwww.chinamineline.comTel0086-0371-67858720 Mobile 86-156 1774 7835 ( 7x24h Hot Line) AddressNo. 8 Hongye Road, West Hehuan Street, High-Teeh Development Zone, Zhengzhou, China

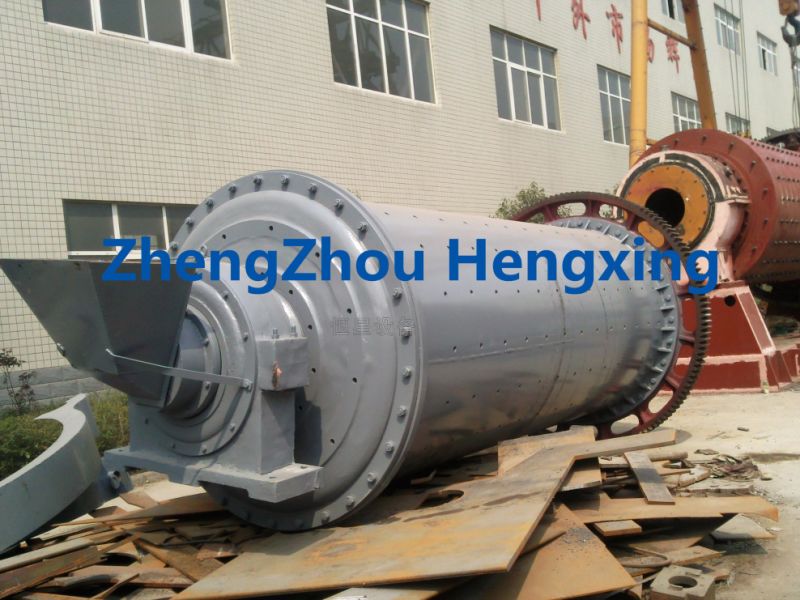

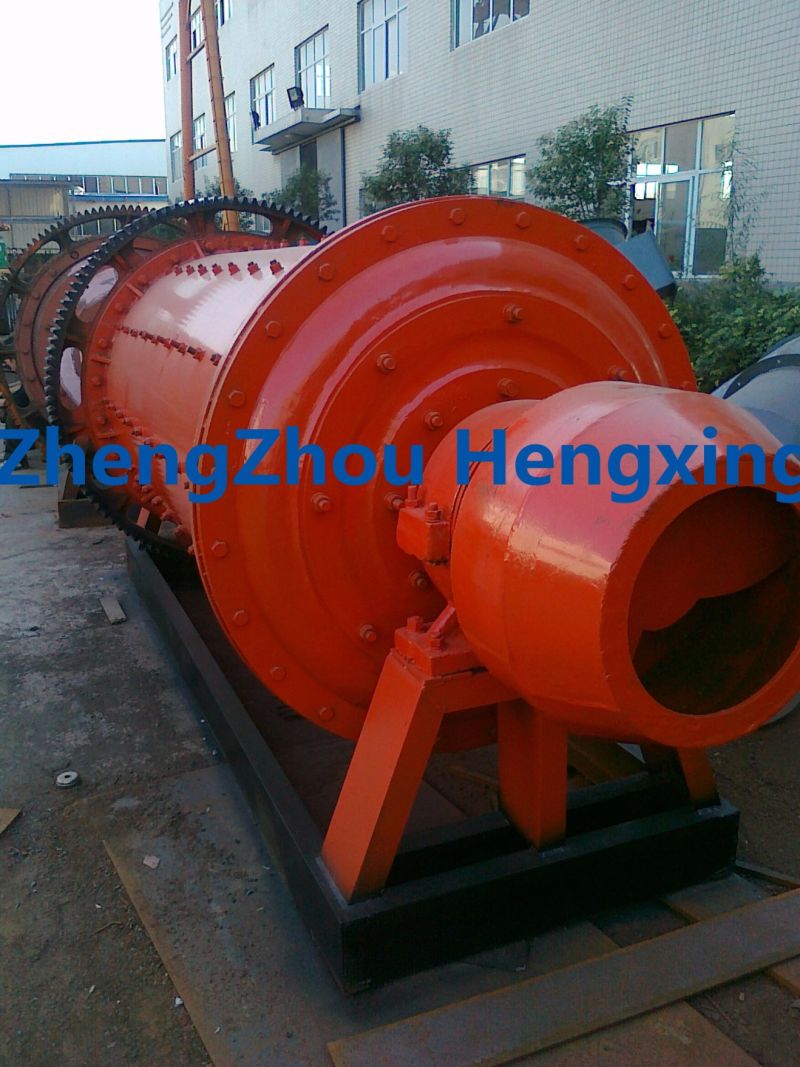

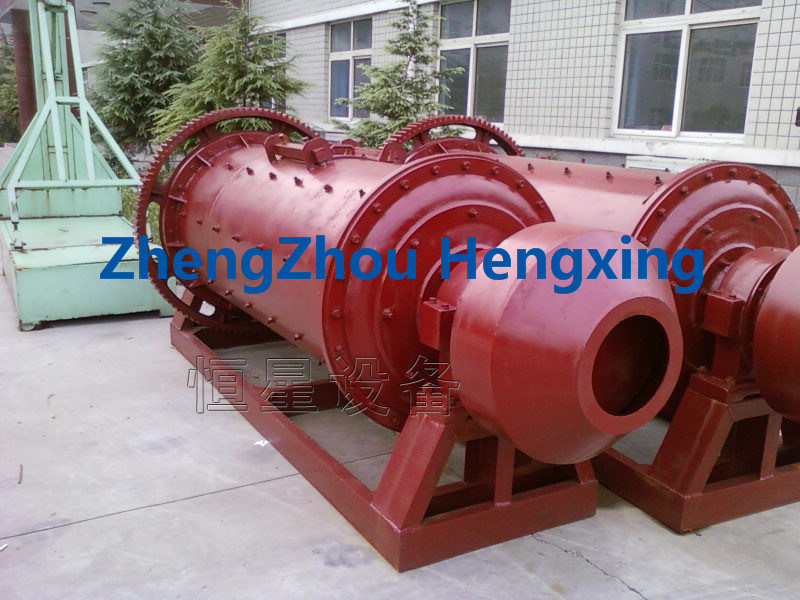

Introduction Ball Mill Machine, Ball Grinding Mill
Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and width= ' 720px ' srcid= ' 95655272 ' src= ' /upLoad/et29896302141232.jpg ' />
Application of Ball Mill Machine, Ball Grinding Mill
The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Features of Ball Mill Machine, Ball Grinding Mill
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work are obvious advantages;
3. Various barrel lining and grinding media, excellent corrosion resistance;
4. Installation and adjustment are very convenient and easy to operate.
5. Cylinder is rolled and welded with Q235B steel plate. (the steel thickness is generally 1/100 of the cylinder diameter, for example ball mill of Φ1500, the steel plate thickness is 16 mm), the material of inlet and outlet hollow shaft is ZG35.
6.The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scale board. This machine run steadily and works reliably.
Working Principle of Stirred Rubber Lining Ball Mill
The ball mill made by the Chinese ball grinder manufacturer is a grid shaped>Materials enter the first cabin of ball mills via the feeding device across the hollow shaft uniformly. In the first cabin, there is a ladder scale board or a ripple scale board with different steel balls which will be lifted to certain height in the effect of centrifugal force produced by the rotating cylinder. Then the balls fall to impact and grind the materials. After the rough grinding process, materials enter the second cabin through the single layer cabin separating board. There is a scale board with steel balls in the second cabin which will grind materials. The finished powder materials are discharged from the unloading plate, thus finishing the grinding process.
Parameters of Ball Mill Machine, Ball Grinding Mill
Model(mm)
(Dia. *Length)Shell rotation speed
(r/min)Ball load
(t)Feeding size
(mm)Discharging size
(mm)Capacity
(t/h)Motor power
(kw)Total weight
(t)900?80036-381.5≤200.075-0.890.65-218.55.851200?400363≤250.075-0.61.5-4.83013.61200?50032.45≤250.074-0.41.6-5.85515.61500?7002812≤250.074-0.43.5-613025.81830?00025.411≤250.074-0.44-1013034.52100?00023.715≤250.074-0.46.5-36155452200?50021.527≤250.074-0.49-4528054.52400?0002123≤250.074-0.47-50245582700?00020.740≤250.074-0.422-80380953200?5001865≤250.074-0.4As per process conditions6301493600?50018131≤250.074-0.445.8-25618002604000?00016.9121≤250.074-0.445-20815002304500?40015.6172≤250.074-0.484-30620002805030?40014.4216≤250.074-0.498-38625003205500?50013.8338≤250.074-0.4148-6154500525

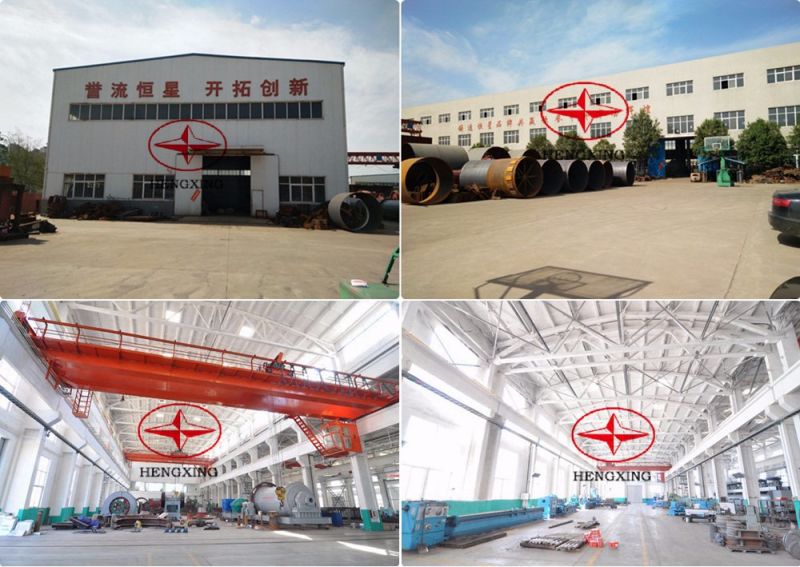

Zhengzhou HengXing Heavy Equipment Co.,Ltd
Zhengzhou Hengxing is a joint stock corporation integrating scientific research, manufacture, marketing and exporting with the main target at the large and medium sized series of heavy duty equipments for mining, ore selecting, wall materials, formed coal, metallurgy and ect. The company located at Zhengzhou National High-Tech Development Zone.
We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, Powder making Machines, Ore Dressing Machines, Briquette Machines and complete Cement Output Lines. Our products have been sold to areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
