China Simple and Full Auto Metal Sheet Slitting Machine Line

Basic Info

Shipping: 40 Gp Container Funcation: Slitting Steel Coil The Final Product: Small Steel Strips Product Name: Steel Coil Slitting Machine Trademark: Hx steel coil slitting machine Transport Package: Steel Coil Slitting Machine Is Nude Specification: max. 1250mm Origin: Botou City, Hebei Province, China HS Code: 84552210

Product Description

funcation for the steel coil slitting machine

Steel coil slitting machineis a high speed line, to match the large quantity production needs.

This machine is main make the big width coil slit to small strips.

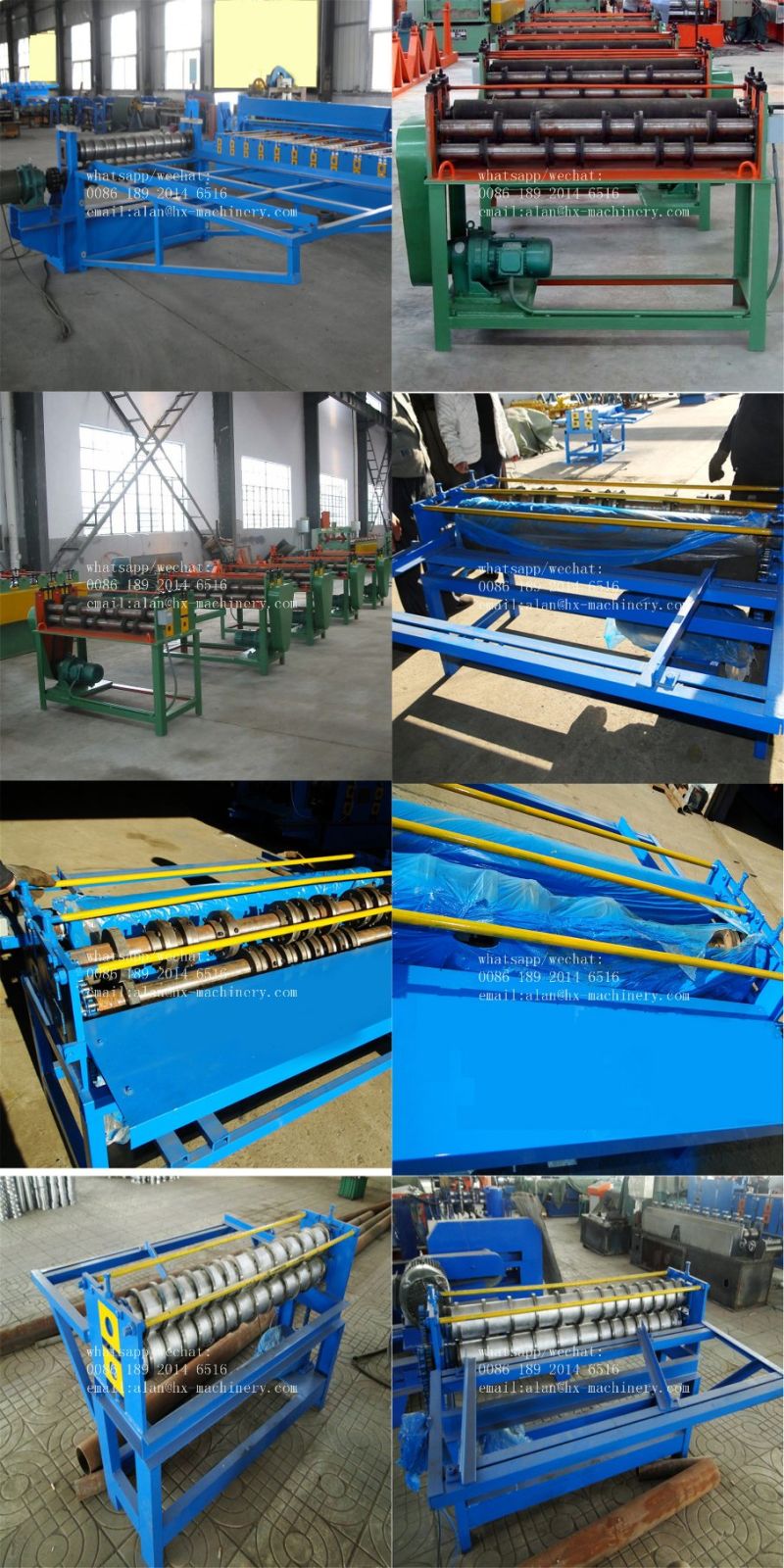

small simple glavanized stainless steel slitter and cutter slitting machine equipment's technical parameter

ModelManual slitting machinematerialStainless steelWarrant1 yearUse of machineCoil slittingLine speed10-12/minpowerelectricFeeding width600-1250mmPower of motor3KWshaft diameter60mm(or as customer's demand)color anyStep of forming roller13Material of frame80mm H shape steel weldingThickness of middle plate12mmDrive typeDrive by chainchain19.05mmweightAbout 0.9TAppearance size1.5m (length)*1.0m (width) *1.2m (height)Packageshipping package, if have special requirement, add package charge

The whole production line include the 15 Tons hydraulic decoiler with loading car>My engineer will install the machine overseas and training the workers how to start the machine,change the slitting blade, and other adjustment.

To make the coil material feed into the slitting machine and tension machine smoothly, need make two storage pits>Here please check some main machine units as below:

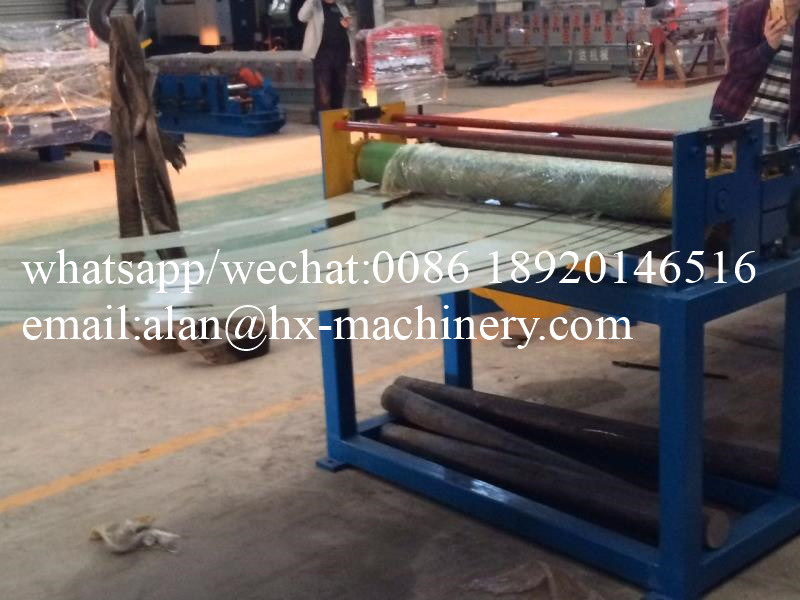

Slitting machine of the steel coil slitting machine:

ower part: This is composed of power-stand, 650decelerator, 45KW direct current motor,

gear distributing case, coupler, spindle, connecting-cover, etc.

Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ180mm, 2pcs),movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device,accompany of blade, separating cover, rubber band and 10 blades with the machine

It change the blades through moving out the bracket hydraulically and is very convenient and fast

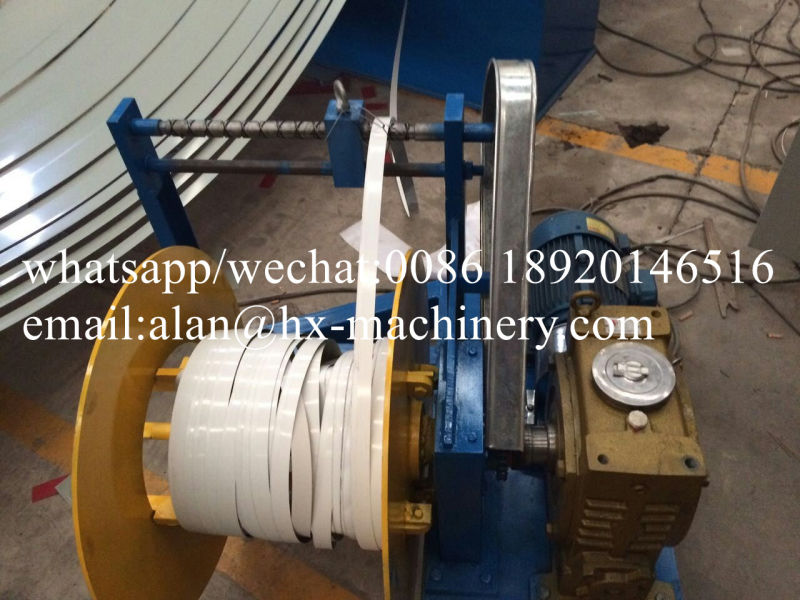

The scrap winder of the steel coil slitting machine:

It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, 350 decelerator and 7.5Kw electric machine.
The tension stand of the steel coil slitting machine:

This is composed of frame, preliminary dividing shaft, bracket, pressing shaft, hydraulic damping device,lifting and pressing device for pressing shaft, set of dividing slice and cover, etc.

Block device: hydraulic drives it up and down according to the material thickness.

Three hydraulic cylinders to make the pressure adjustable so that it can make the different thickness material's tension power.

It also can ensure the recoiling quality.
we also supply large slitting lilne as below:

This is composed of frame, bearing-stand, recoiling shaft, expand recoiling device and plate,

movable supporting stand, accompany of decelerator, direct-current speed adjustable motor: 85KW and direct-current electronic cabinet, etc.

Designed with the seamless expand and shrink structure and hydraulic clip-mouth so that when the heads feed into the clip-mouth, it will close automatically and start winding.

Contact Us
About the steel coil slitting machine,If you have any need and questions ,please don't hesitate to contact us .
